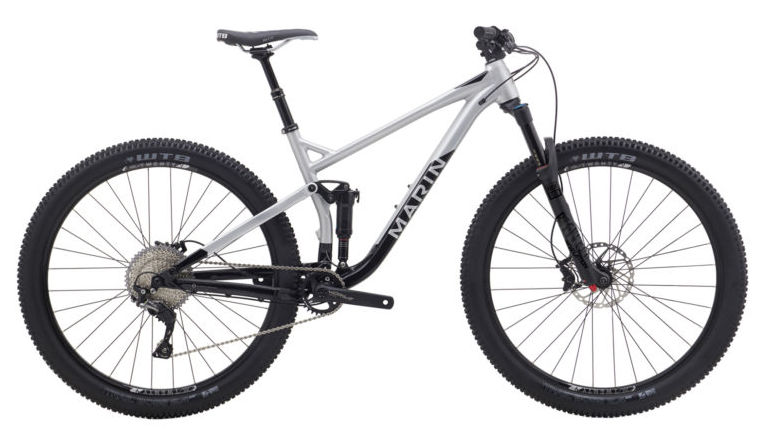

2018 Marin Rift Zone geometry
Full frame geometry for the 2018 Marin Rift Zone, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 420 | 74.8 | 67.5 | 100 | 585 | 385 | 684 | 38 | 435 | 1134 | 51 |
| M | 614 | 441 | 74.8 | 67.5 | 105 | 612 | 420 | 713 | 38 | 435 | 1156 | 51 |
| L | 619 | 460 | 74.8 | 67.5 | 110 | 636 | 450 | 725 | 38 | 435 | 1178 | 51 |
| XL | 623 | 490 | 74.8 | 67.5 | 115 | 670 | 480 | 750 | 38 | 435 | 1209 | 51 |
All measurements in millimetres unless marked (°) for angles.
