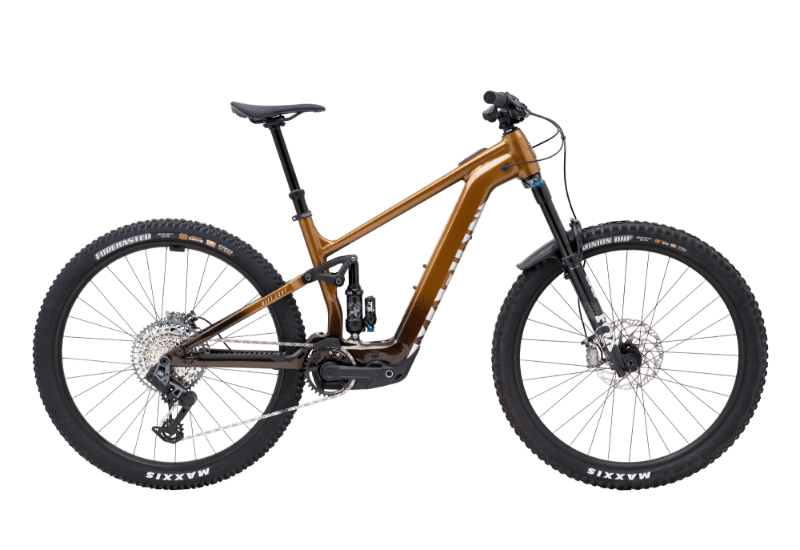

2025 Marin Rift Zone EL geometry
Full frame geometry for the 2025 Marin Rift Zone EL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 445 | 76.5 | 65 | 100 | 585.1 | 390 | 693.7 | 32 | 440 | 1198.3 | 44 |
| M | 614 | 465 | 76.5 | 65 | 110 | 607.2 | 400 | 696 | 32 | 440 | 1222.5 | 44 |
| L | 625.1 | 485 | 76.5 | 65 | 120 | 629.3 | 425 | 709.9 | 32 | 440 | 1246.7 | 44 |
| XL | 634.2 | 515 | 76.5 | 65 | 130 | 661.4 | 435 | 719.9 | 32 | 440 | 1281 | 44 |
All measurements in millimetres unless marked (°) for angles.
