2025 Marin · DH

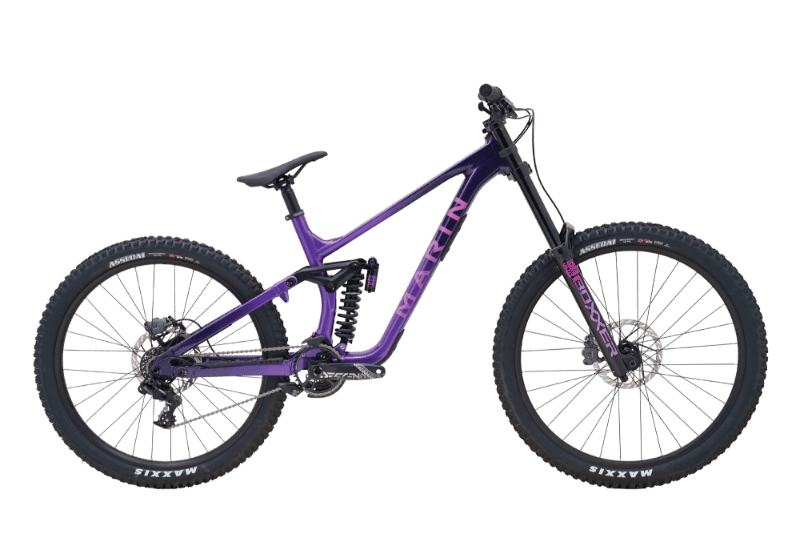

2025 Marin Quake geometry
Full frame geometry for the 2025 Marin Quake, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 631 | 420 | 76 | 62.5 | 100 | 577 | 390 | 24 | 440 | 1227 | 52 |
| L | 640 | 480 | 76 | 62.5 | 110 | 639 | 430 | 24 | 440 | 1291 | 52 |
| M | 640 | 440 | 76 | 62.5 | 110 | 599 | 415 | 24 | 440 | 1251 | 52 |
All measurements in millimetres unless marked (°) for angles.
