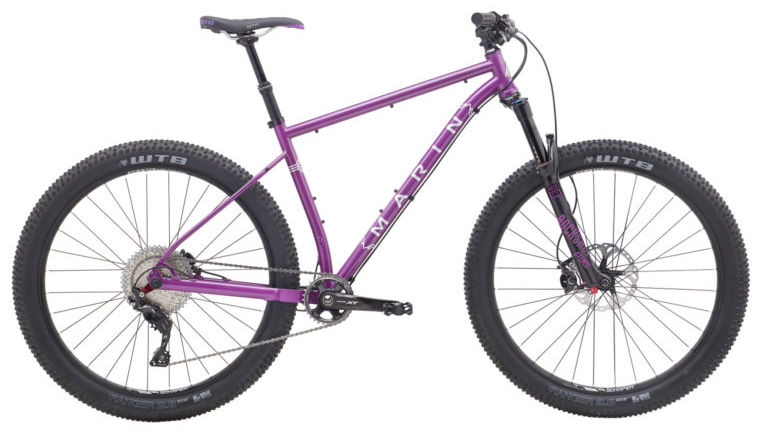

2018 Marin Pine Mountain geometry
Full frame geometry for the 2018 Marin Pine Mountain, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 621 | 413 | 73.5 | 69 | 110 | 598 | 440 | 748 | 55 | 437 | 1119 | 51 |
| S | 621 | 385 | 73.5 | 69 | 110 | 570 | 390 | 706 | 55 | 437 | 1091 | 51 |
| L | 626 | 435 | 73.5 | 69 | 115 | 621 | 482 | 778 | 55 | 437 | 1142 | 51 |
| XL | 640 | 452 | 73.5 | 69 | 130 | 644 | 525 | 819 | 55 | 437 | 1165 | 51 |
| XXL | 668 | 462 | 73.5 | 69 | 160 | 664 | 570 | 860 | 55 | 437 | 1186 | 51 |
All measurements in millimetres unless marked (°) for angles.
