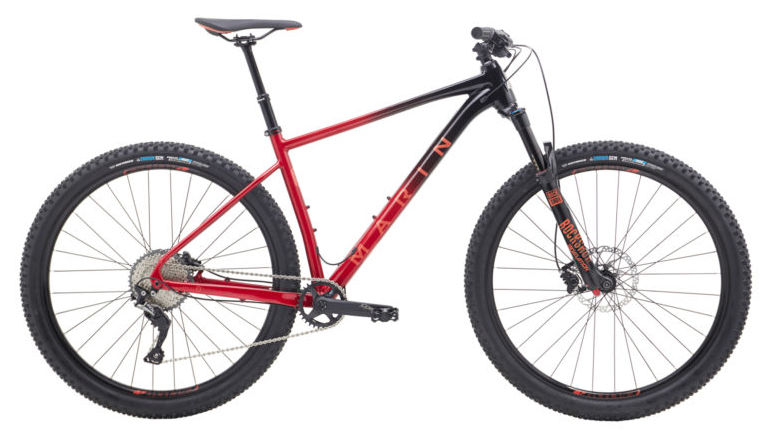

2018 Marin Nail Trail geometry
Full frame geometry for the 2018 Marin Nail Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 418 | 74 | 68 | 105 | 590 | 381 | 697 | 45 | 425 | 1112 | 42 |
| M (27.5) | 602 | 434 | 74 | 68 | 110 | 607 | 431 | 735 | 45 | 425 | 1130 | 42 |
| M (29) | 626 | 428 | 74 | 68 | 110 | 607 | 431 | 739 | 59 | 435 | 1142 | 51 |
| L | 630 | 446 | 74 | 68 | 115 | 627 | 482 | 782 | 59 | 435 | 1163 | 51 |
| XL | 635 | 462 | 74 | 68 | 120 | 644 | 520 | 813 | 59 | 435 | 1181 | 51 |
| XXL | 640 | 472 | 74 | 68 | 125 | 655 | 559 | 844 | 59 | 435 | 1192 | 51 |
All measurements in millimetres unless marked (°) for angles.
