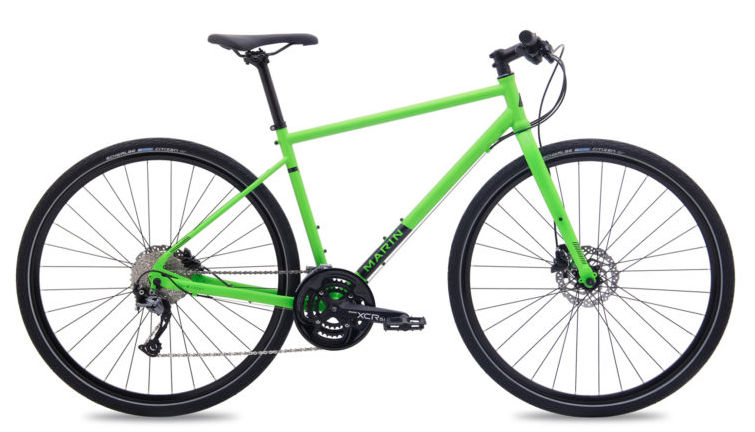

2018 Marin Muirwoods geometry
Full frame geometry for the 2018 Marin Muirwoods, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 567 | 387 | 74 | 71 | 123 | 550 | 381 | 663 | 70 | 445 | 1052 | 51 |
| M | 574 | 420 | 73.5 | 72 | 123 | 590 | 432 | 705 | 70 | 445 | 1070 | 45 |
| L | 583 | 432 | 73.5 | 72 | 133 | 605 | 483 | 748 | 70 | 445 | 1086 | 45 |
| XL | 593 | 434 | 73 | 72 | 143 | 615 | 521 | 779 | 70 | 445 | 1090 | 45 |
| XXL | 612 | 432 | 72 | 72 | 163 | 630 | 559 | 811 | 70 | 445 | 1094 | 45 |
All measurements in millimetres unless marked (°) for angles.
