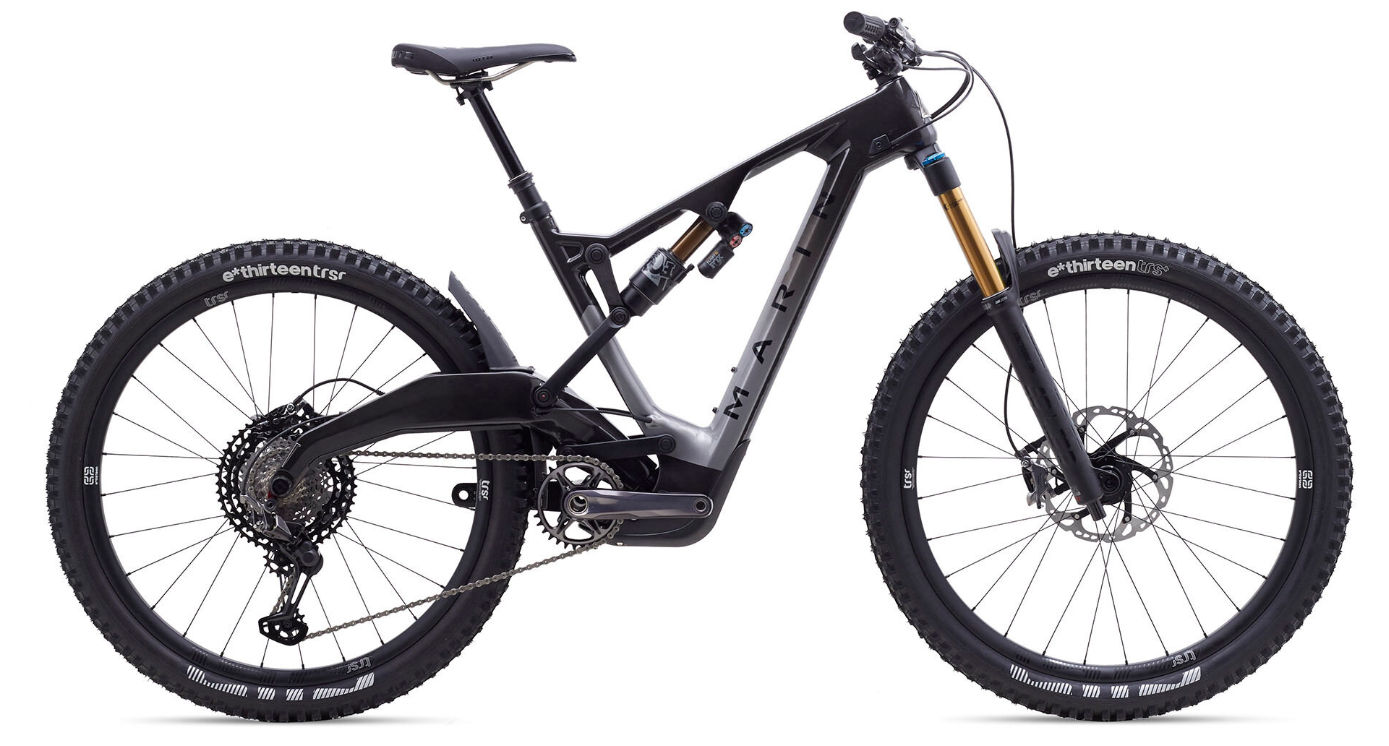

2019 Marin Mount Vision geometry
Full frame geometry for the 2019 Marin Mount Vision, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 432 | 75.5 | 65 | 90 | 581 | 395 | 716 | 30 | 420 | 1160 | 44 |
| M | 600 | 453 | 75.3 | 65 | 105 | 603 | 430 | 717 | 30 | 420 | 1187 | 44 |
| L | 618 | 472 | 75.1 | 65 | 125 | 626 | 465 | 728 | 30 | 420 | 1213 | 44 |
| XL | 630 | 493 | 75 | 65 | 138 | 650 | 502 | 749 | 30 | 420 | 1240 | 44 |
All measurements in millimetres unless marked (°) for angles.
