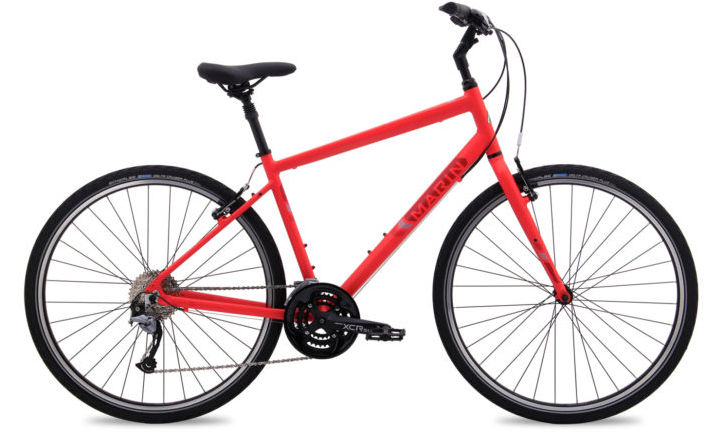

2018 Marin Larkspur geometry
Full frame geometry for the 2018 Marin Larkspur, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 389 | 71 | 70.5 | 140 | 590 | 381 | 667 | 65 | 460 | 1076 | 45 |
| M | 613 | 394 | 71 | 70.5 | 170 | 605 | 432 | 717 | 65 | 460 | 1091 | 45 |
| L | 627 | 404 | 71 | 70.5 | 185 | 620 | 483 | 761 | 65 | 460 | 1106 | 45 |
| XL | 643 | 414 | 71 | 71 | 200 | 635 | 503 | 780 | 65 | 460 | 1116 | 45 |
| XXL | 662 | 422 | 71 | 71 | 220 | 650 | 559 | 827 | 65 | 460 | 1131 | 45 |
All measurements in millimetres unless marked (°) for angles.
