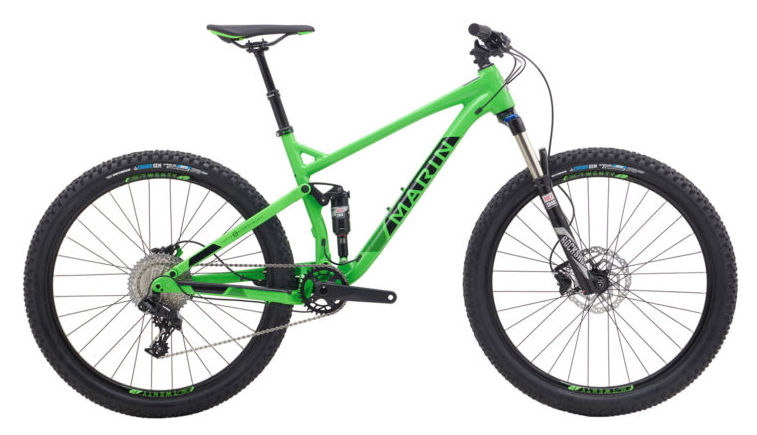

2018 Marin Hawk Hill geometry
Full frame geometry for the 2018 Marin Hawk Hill, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 574 | 400 | 74.2 | 67.5 | 110 | 563 | 335 | 647 | 18 | 430 | 1108 | 42 |
| S | 579 | 418 | 73.8 | 67.5 | 115 | 587 | 385 | 669 | 18 | 430 | 1128 | 42 |
| M | 583 | 437 | 73.5 | 67.5 | 120 | 610 | 435 | 698 | 18 | 430 | 1149 | 42 |
| L | 588 | 451 | 73.2 | 67.5 | 125 | 630 | 485 | 742 | 18 | 430 | 1164 | 42 |
| XL | 592 | 464 | 73 | 67.5 | 130 | 640 | 535 | 783 | 18 | 430 | 1180 | 42 |
All measurements in millimetres unless marked (°) for angles.
