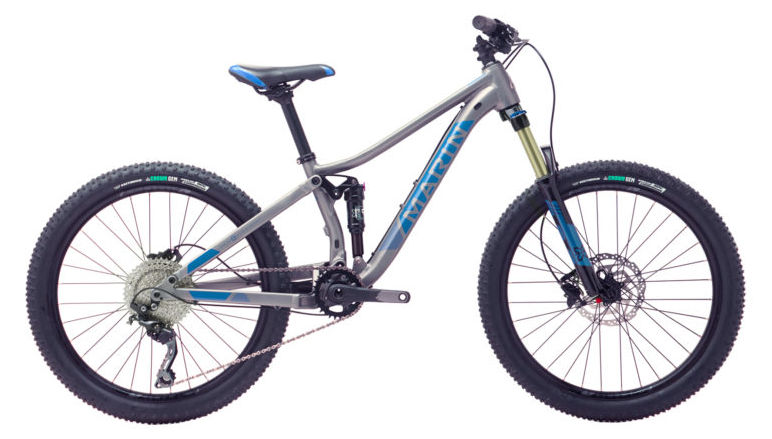

2018 Marin Hawk Hill JR geometry
Full frame geometry for the 2018 Marin Hawk Hill JR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13 | 536 | 380 | 73.5 | 67.5 | 105 | 536 | 335 | 621 | 10 | 428 | 1018 | 42 |
All measurements in millimetres unless marked (°) for angles.
