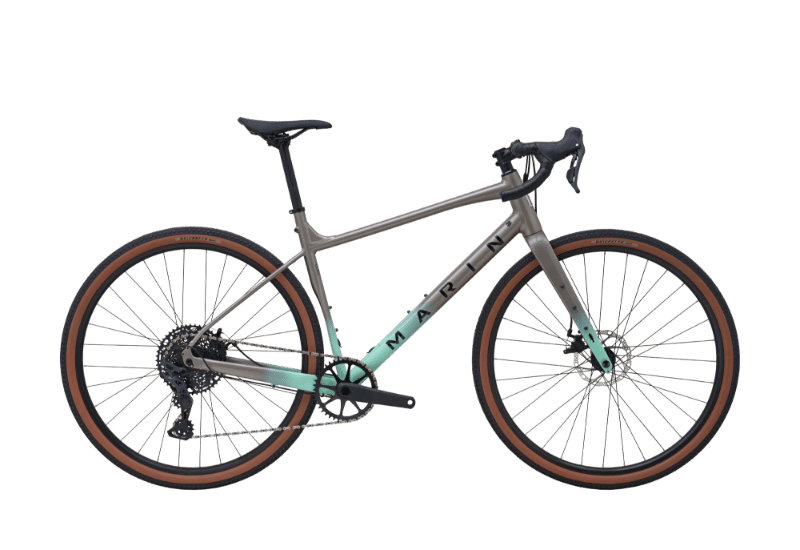

2025 Marin Gestalt X geometry
Full frame geometry for the 2025 Marin Gestalt X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 547.6 | 400 | 75 | 67.5 | 130 | 546.7 | 460 | 678.6 | 80 | 425 | 1065.2 | 50 |
| M | 566 | 420 | 74 | 67.5 | 150 | 582.3 | 485 | 687.7 | 80 | 425 | 1092.8 | 50 |
| L | 589.1 | 440 | 74 | 67.5 | 175 | 608.9 | 505 | 708.6 | 80 | 425 | 1122.4 | 50 |
| XL | 621.5 | 460 | 74 | 67.5 | 210 | 638.2 | 530 | 734.5 | 80 | 425 | 1155.6 | 50 |
All measurements in millimetres unless marked (°) for angles.
