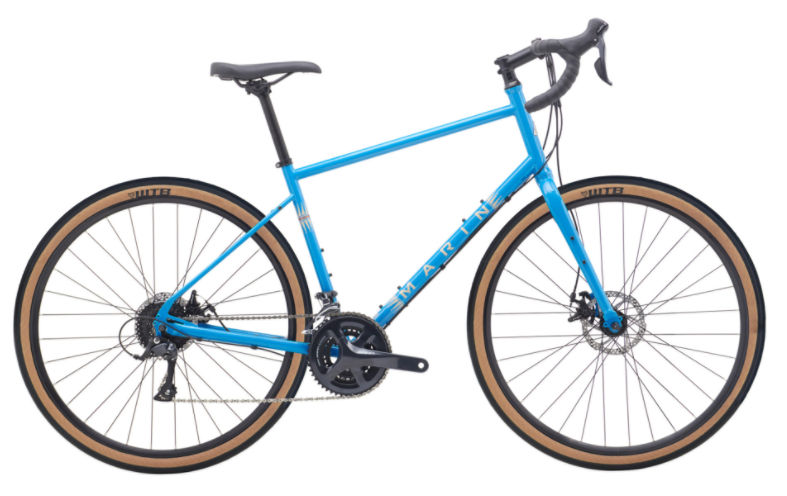

2018 Marin Four Corners geometry
Full frame geometry for the 2018 Marin Four Corners, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 560 | 377 | 74.5 | 70.5 | 177 | 532 | 381 | 667 | 54 | 604 | 432 | 1030 | 43 |
| S | 580 | 381 | 73.5 | 70.5 | 198 | 553 | 422 | 706 | 54 | 615 | 432 | 1042 | 43 |
| M | 617 | 403 | 73.5 | 71.5 | 198 | 586 | 462 | 745 | 72 | 641 | 450 | 1081 | 49 |
| L | 646 | 413 | 72.5 | 71.5 | 229 | 616 | 495 | 777 | 72 | — | 450 | 1100 | 49 |
| XL | 678 | 427 | 72 | 71.5 | 262 | 647 | 528 | 810 | 72 | 685 | 450 | 1125 | 49 |
All measurements in millimetres unless marked (°) for angles.
