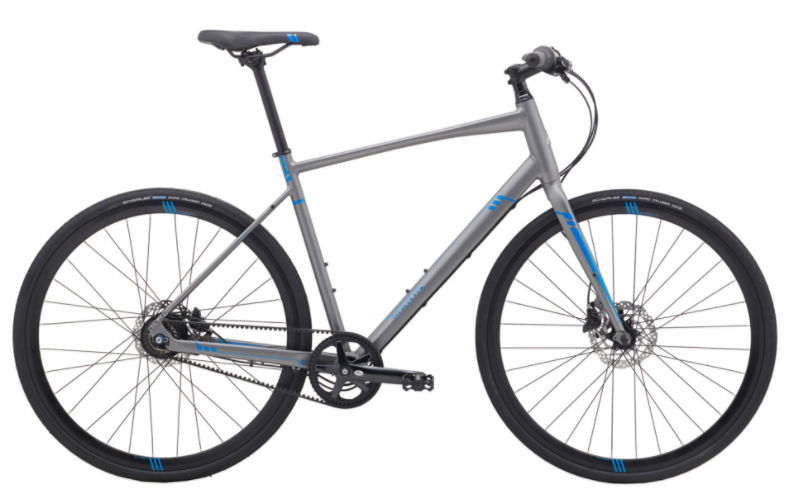

2018 Marin Fairfax Disc geometry
Full frame geometry for the 2018 Marin Fairfax Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 558 | 385 | 73.5 | 72.5 | 135 | 550 | 381 | 660 | 65 | 435 | 1018 | 45 |
| S | 577 | 394 | 73.5 | 72.5 | 155 | 565 | 432 | 706 | 65 | 435 | 1033 | 45 |
| M | 596 | 403 | 73.5 | 72.5 | 175 | 580 | 483 | 750 | 65 | 435 | 1048 | 45 |
| L | 615 | 412 | 73 | 72.5 | 195 | 600 | 521 | 784 | 65 | 435 | 1063 | 45 |
| XL | 644 | 423 | 73 | 72.5 | 225 | 620 | 559 | 819 | 65 | 435 | 1083 | 45 |
All measurements in millimetres unless marked (°) for angles.
