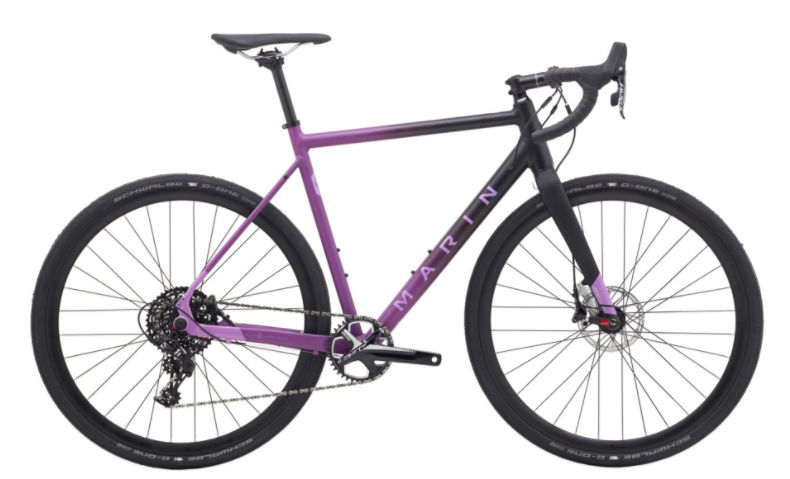

2018 Marin Cortina AX geometry
Full frame geometry for the 2018 Marin Cortina AX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 528 | 378 | 75 | 70.5 | 105 | 520 | 490 | 763 | 70 | 425 | 1008 | 45 |
| 52 | 551 | 382 | 74 | 71.5 | 125 | 540 | 520 | 783 | 70 | 425 | 1010 | 45 |
| 54 | 564 | 383 | 73.5 | 72 | 140 | 550 | 540 | 799 | 67 | 425 | 1011 | 45 |
| 56 | 585 | 387 | 73.5 | 72.5 | 160 | 560 | 560 | 819 | 67 | 425 | 1017 | 45 |
| 58 | 599 | 392 | 73 | 73 | 175 | 575 | 580 | 835 | 65 | 425 | 1022 | 45 |
| 60 | 623 | 400 | 72.5 | 73 | 200 | 590 | 600 | 856 | 65 | 425 | 1037 | 45 |
All measurements in millimetres unless marked (°) for angles.
