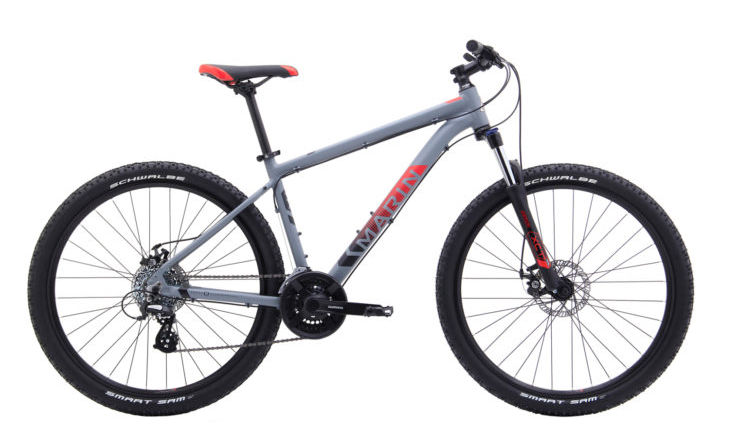

2018 Marin Bolinas Ridge geometry
Full frame geometry for the 2018 Marin Bolinas Ridge, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 583 | 397 | 73 | 69 | 100 | 575 | 330 | 645 | 48 | 430 | 1077 | 44 |
| S | 588 | 410 | 73 | 69 | 105 | 590 | 381 | 686 | 48 | 430 | 1092 | 44 |
| M | 592 | 426 | 73 | 69 | 110 | 607 | 431 | 728 | 48 | 430 | 1109 | 44 |
| L | 597 | 444 | 73 | 69 | 115 | 627 | 482 | 769 | 48 | 430 | 1130 | 44 |
| XL | 602 | 460 | 73 | 69 | 120 | 644 | 520 | 799 | 48 | 430 | 1147 | 44 |
| XXL | 606 | 470 | 73 | 69 | 125 | 655 | 559 | 829 | 48 | 430 | 1158 | 44 |
All measurements in millimetres unless marked (°) for angles.
