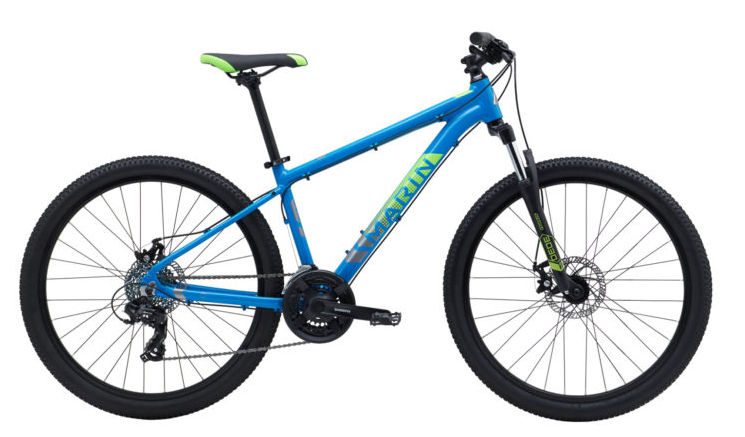

2018 Marin Bolinas Ridge 26 geometry
Full frame geometry for the 2018 Marin Bolinas Ridge 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 557 | 405 | 73 | 69 | 100 | 575 | 330 | 638 | 35 | 430 | 1075 | 39 |
| S | 562 | 418 | 73 | 69 | 105 | 590 | 381 | 678 | 35 | 430 | 1091 | 39 |
All measurements in millimetres unless marked (°) for angles.
