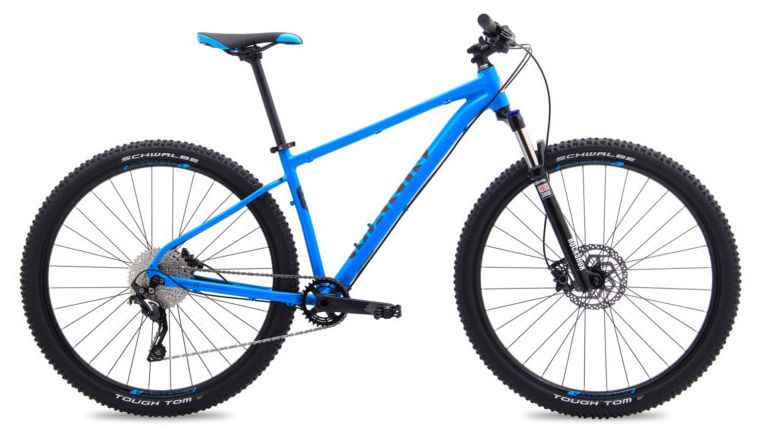

2018 Marin Bobcat Trail geometry
Full frame geometry for the 2018 Marin Bobcat Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 579 | 409 | 74 | 68 | 100 | 575 | 330 | 640 | 48 | 430 | 1098 | 44 |
| S | 583 | 423 | 74 | 68 | 105 | 590 | 381 | 679 | 48 | 430 | 1114 | 42 |
| M (27.5) | 588 | 438 | 74 | 68 | 110 | 607 | 431 | 723 | 48 | 430 | 1131 | 42 |
| M (29) | 614 | 431 | 74 | 68 | 110 | 607 | 431 | 735 | 61 | 445 | 1150 | 51 |
| L | 619 | 450 | 74 | 68 | 115 | 627 | 482 | 779 | 61 | 445 | 1171 | 51 |
| XL | 623 | 465 | 74 | 68 | 120 | 644 | 520 | 810 | 61 | 445 | 1188 | 51 |
| XXL | 628 | 475 | 74 | 68 | 125 | 655 | 559 | 939 | 61 | 445 | 1200 | 51 |
All measurements in millimetres unless marked (°) for angles.
