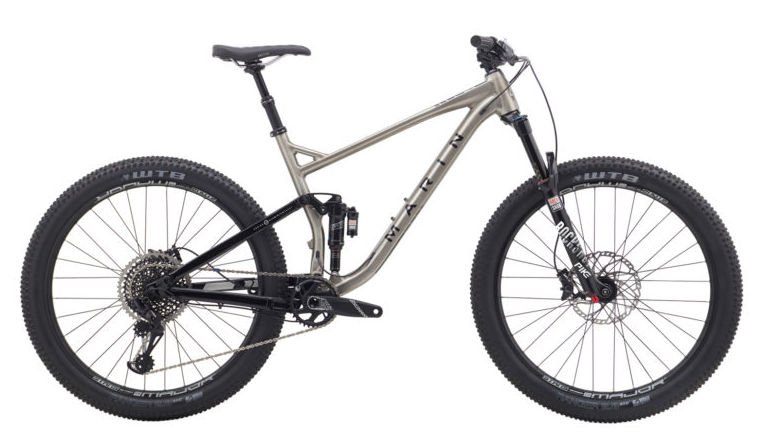

2018 Marin B-17 geometry
Full frame geometry for the 2018 Marin B-17, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 415 | 73.4 | 67 | 100 | 587 | 385 | 678 | 35 | 435 | 1138 | 51 |
| M | 617 | 435 | 73.4 | 67 | 105 | 613 | 420 | 707 | 35 | 435 | 1160 | 51 |
| L | 622 | 456 | 73.4 | 67 | 110 | 638 | 450 | 719 | 35 | 435 | 1181 | 51 |
| XL | 627 | 485 | 73.4 | 67 | 115 | 672 | 480 | 745 | 35 | 435 | 1213 | 51 |
All measurements in millimetres unless marked (°) for angles.
