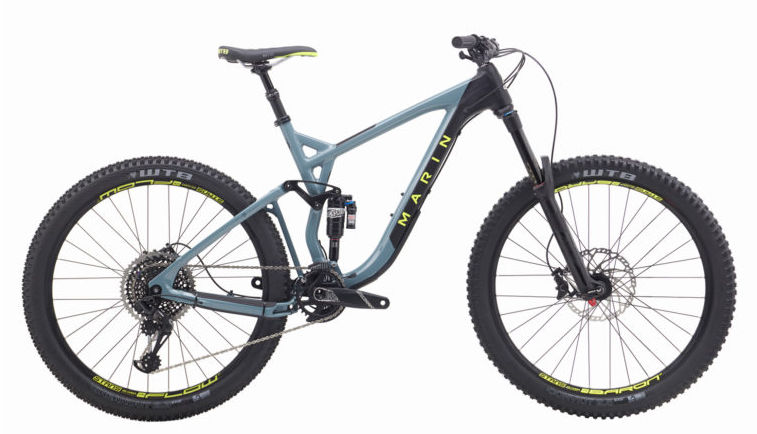

2018 Marin Attack Trail geometry
Full frame geometry for the 2018 Marin Attack Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 420 | 73.5 | 66 | 95 | 580 | 405 | 698 | 14 | 435 | 1157 | 46 |
| M | 597 | 440 | 73.5 | 66 | 105 | 609 | 445 | 731 | 14 | 435 | 1181 | 46 |
| L | 608 | 460 | 73.5 | 66 | 115 | 635 | 480 | 760 | 14 | 435 | 1205 | 46 |
| XL | 624 | 480 | 73.5 | 66 | 135 | 665 | 520 | 779 | 14 | 435 | 1233 | 46 |
All measurements in millimetres unless marked (°) for angles.
