2018 Marin Argenta geometry

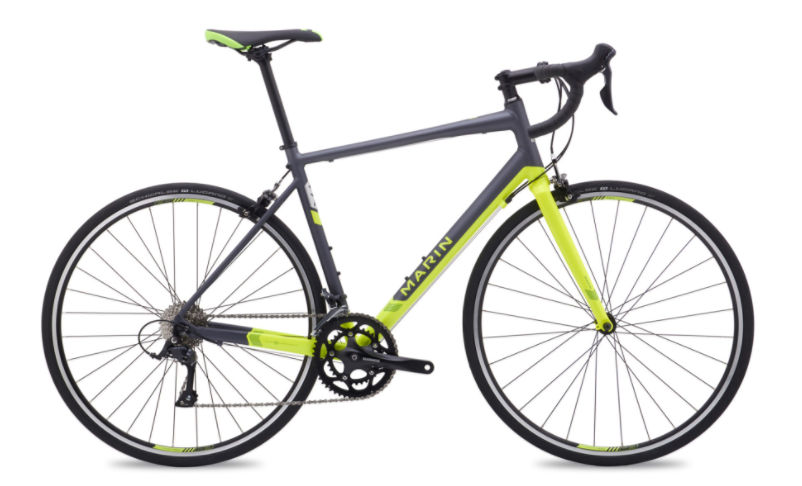

Name: 2018 Marin Argenta
Brand: Marin

Full frame geometry for the 2018 Marin Argenta, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
47	546	328	74.5	72	135	480	440	744	72	415	939	45
50	561	339	74	72	150	500	470	765	72	415	954	45
52	576	354	73.5	72.2	165	525	490	782	72	415	972	45
54	585	372	73.5	72.2	175	545	510	796	72	415	992	45
56	600	381	73	72.5	190	565	530	812	72	415	1004	45
58	620	396	73	72.5	210	585	550	832	72	415	1024	45
60	629	402	72.5	72.5	220	600	570	845	72	415	1033	45

All measurements in millimetres unless marked (°) for angles.
