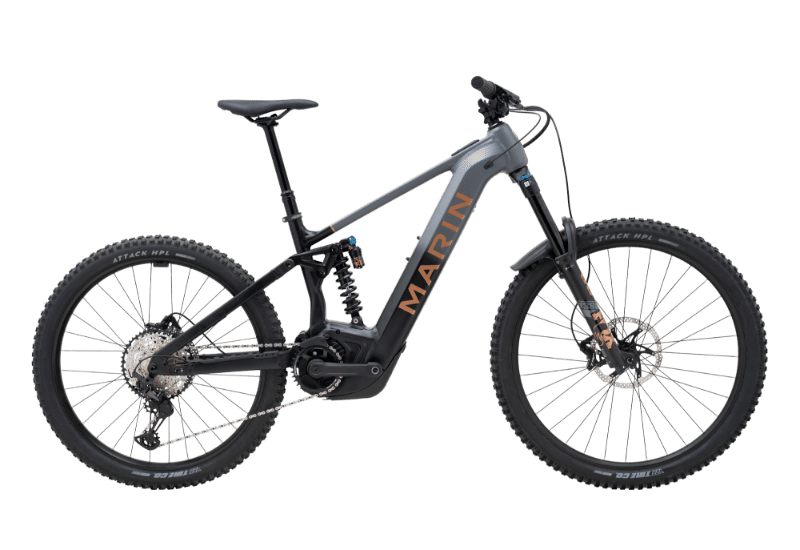

2025 Marin Alpine Trail E geometry
Full frame geometry for the 2025 Marin Alpine Trail E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 633 | 460 | 79 | 63.5 | 115 | 591 | 420 | 713 | 24 | 435 | 1248 | 44 |
| L | 642 | 490 | 79 | 63.5 | 125 | 627 | 430 | 722 | 24 | 435 | 1283 | 44 |
| XL | 646 | 520 | 79 | 63.5 | 130 | 659 | 460 | 733 | 24 | 435 | 1315 | 44 |
All measurements in millimetres unless marked (°) for angles.
