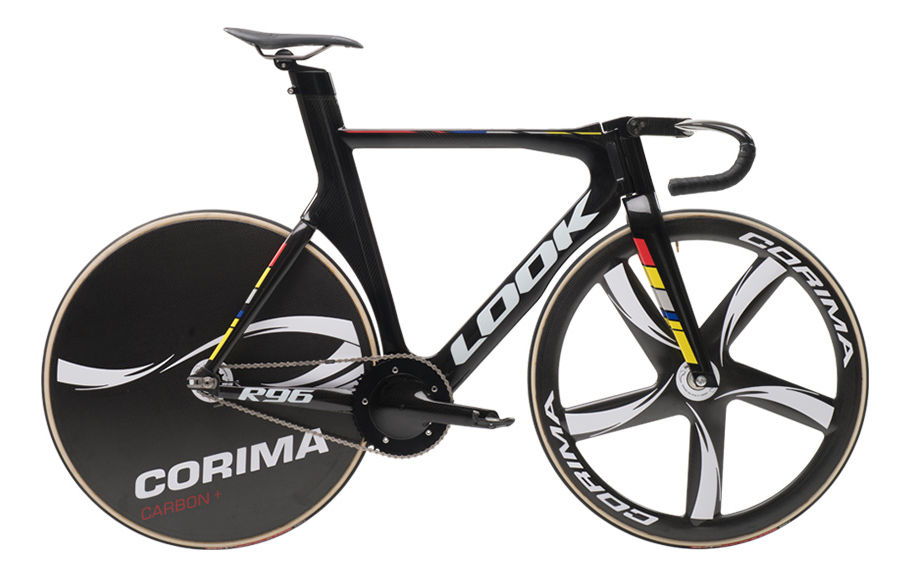

2018 Look R96 geometry
Full frame geometry for the 2018 Look R96, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 486 | 381 | 74.5 | 72.5 | 126 | 516 | 758 | 50 | 566 | 380 | 34 | 61 |
| XXS | 486 | 359 | 74.5 | 72.5 | 115 | 495 | 746 | 50 | 544 | 380 | 34 | 61 |
| S | 507 | 394 | 74.5 | 74.5 | 140 | 535 | 799 | 50 | 559 | 380 | 34 | 58 |
| M | 535 | 412 | 74.5 | 74.5 | 169 | 560 | 828 | 50 | 584 | 380 | 34 | 58 |
All measurements in millimetres unless marked (°) for angles.
