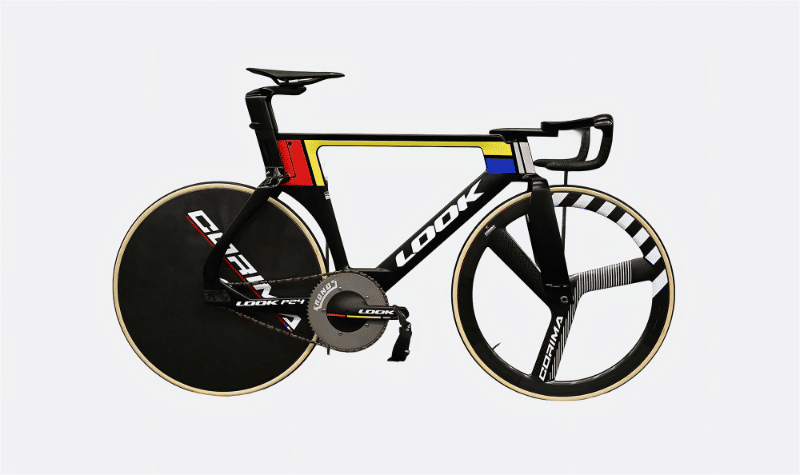

2026 Look P24 geometry
Full frame geometry for the 2026 Look P24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 466 | 412.6 | 74.5 | 74.7 | 48.9 | 541.9 | 483.3 | 482.5 | 50 | — | 399 | 30 | 61.4 |
| S | 483 | 438.6 | 74.5 | 74.7 | 66.5 | 572.6 | 501 | 499.5 | 50 | 590.5 | 399 | 30 | 61.4 |
| M | 500 | 464.6 | 74.5 | 74.7 | 84.1 | 603.3 | 518.7 | 516.5 | 50 | 621 | 399 | 30 | 61.4 |
| L | 517 | 490.6 | 74.5 | 74.7 | 101.7 | 634 | 536.4 | 533.5 | 50 | 651.6 | 399 | 30 | 61.4 |
All measurements in millimetres unless marked (°) for angles.
