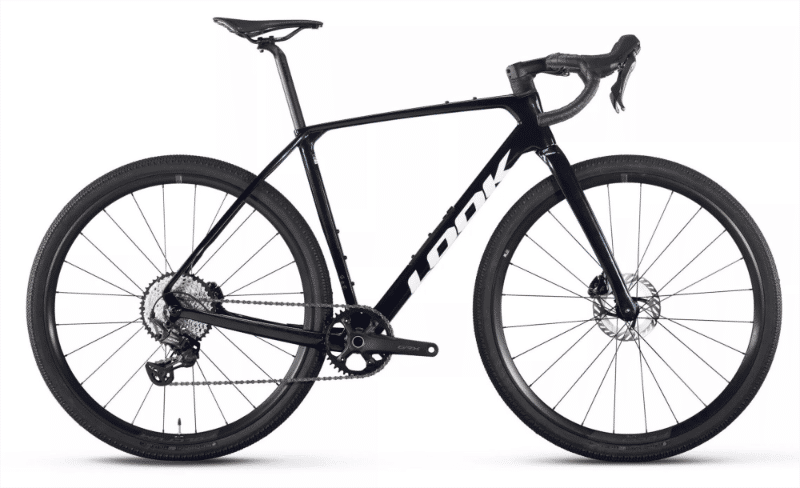

2026 Look G85 Cezal geometry
Full frame geometry for the 2026 Look G85 Cezal, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 547 | 360 | 74 | 69.5 | 82.5 | 511.6 | 470 | 761.2 | 76 | 592.5 | 425 | 50 | 81.2 |
| S | 566 | 370 | 74 | 69.5 | 102.8 | 527.1 | 490 | 781.8 | 76 | 611.3 | 425 | 50 | 81.2 |
| M | 590 | 380 | 74 | 70 | 128.8 | 544 | 510 | 805.2 | 73.5 | 625.5 | 425 | 50 | 77.8 |
| L | 614 | 390 | 74 | 70 | 154.4 | 560.9 | 530 | 825.8 | 73.5 | 644.1 | 425 | 50 | 77.8 |
| XL | 638 | 400 | 74 | 70.5 | 180.2 | 577.8 | 550 | 849.1 | 71 | 653.8 | 425 | 46 | 74.4 |
All measurements in millimetres unless marked (°) for angles.
