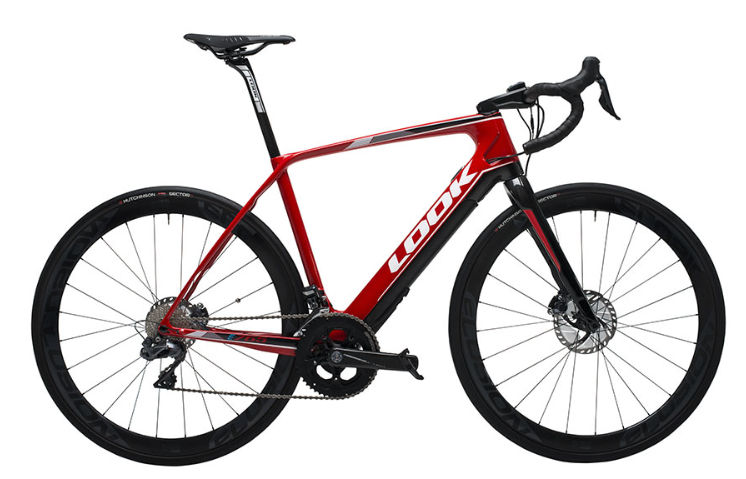

2019 Look E-765 Optimum geometry
Full frame geometry for the 2019 Look E-765 Optimum, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 355 | 74 | 70.3 | 112 | 507 | 470 | 70 | 577 | 415 | 50 | 70 |
| S | 554 | 365 | 74 | 70.3 | 137 | 524 | 490 | 70 | 596 | 415 | 50 | 70 |
| M | 578 | 375 | 73 | 70.3 | 162 | 552 | 510 | 70 | 614 | 415 | 50 | 70 |
| L | 602 | 385 | 73 | 70.3 | 188 | 569 | 535 | 70 | 632 | 415 | 50 | 70 |
| XL | 626 | 395 | 73 | 70.3 | 214 | 586 | 560 | 70 | 651 | 415 | 50 | 70 |
All measurements in millimetres unless marked (°) for angles.
