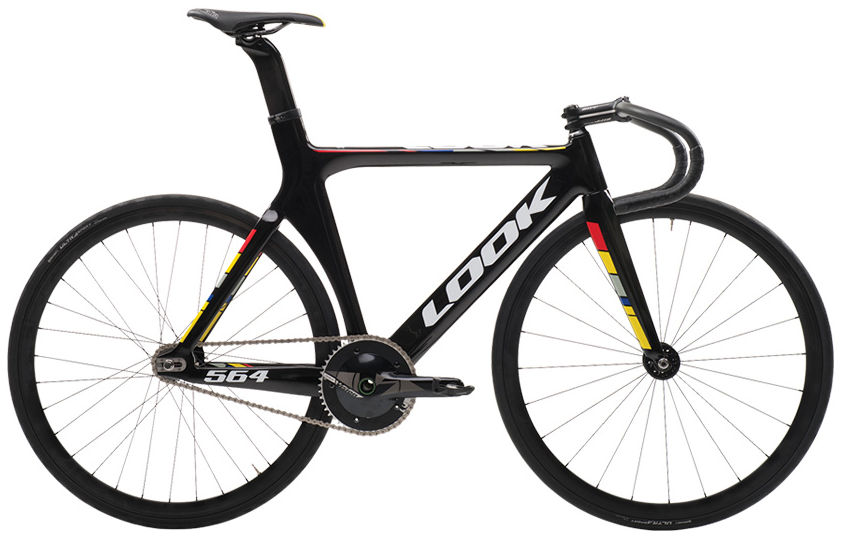

2016 Look CR 564 P geometry
Full frame geometry for the 2016 Look CR 564 P, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 471 | 390 | 74 | 74 | 95 | 525 | 747 | 45 | 551 | 375 | 922 | 35 | 60 |
| S | 481 | 407 | 74 | 74 | 105 | 545 | 763 | 45 | 571 | 375 | 942 | 35 | 60 |
| M | 492 | 424 | 75.5 | 74.5 | 115 | 560 | 769 | 45 | 586 | 375 | 957 | 35 | 56 |
All measurements in millimetres unless marked (°) for angles.
