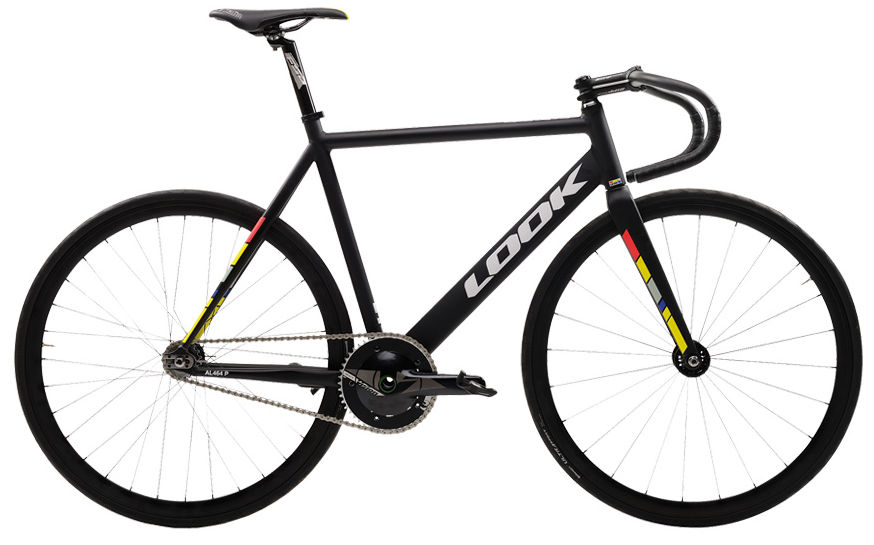

2016 Look Al 464 geometry
Full frame geometry for the 2016 Look Al 464, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504 | 370 | 73.5 | 73 | 121 | 520 | 748 | 49 | 557 | 402 | 953 | 43 | 58 |
| S | 519 | 386 | 73.5 | 73.5 | 135 | 540 | 767 | 49 | 572 | 402 | 969 | 43 | 55 |
| M | 548 | 403 | 73.5 | 73.5 | 165 | 565 | 796 | 49 | 597 | 402 | 994 | 43 | 55 |
| L | 567 | 417 | 73.5 | 73.5 | 185 | 585 | 815 | 49 | 617 | 402 | 1014 | 43 | 55 |
All measurements in millimetres unless marked (°) for angles.
