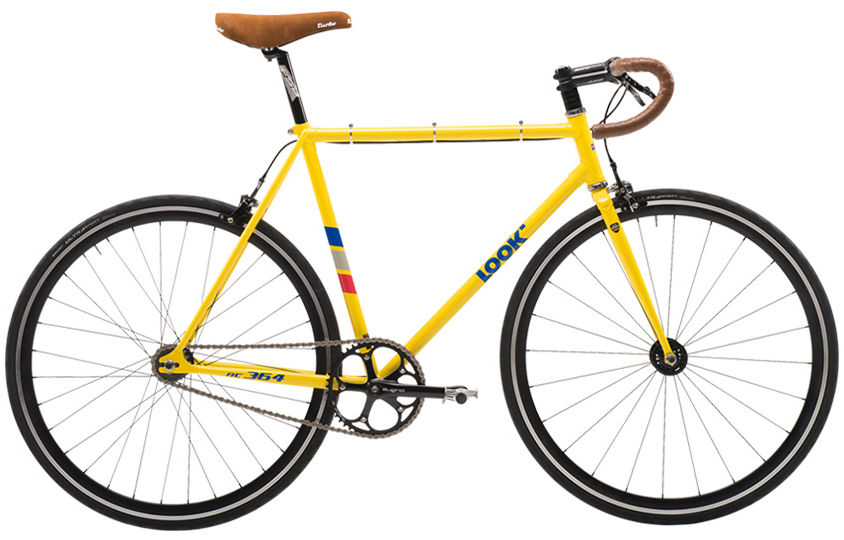

2016 Look AC 364 geometry
Full frame geometry for the 2016 Look AC 364, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 506 | 373 | 74.5 | 73.5 | 107 | 513 | 809 | 50 | 550 | 395 | 940 | 38 | 60 |
| S | 520 | 390 | 74.5 | 73.5 | 122 | 534 | 824 | 50 | 571 | 395 | 961 | 38 | 60 |
| M | 540 | 405 | 74.5 | 74 | 141 | 555 | 846 | 50 | 587 | 395 | 977 | 38 | 57 |
| L | 560 | 420 | 74.5 | 74 | 162 | 575 | 866 | 50 | 608 | 395 | 998 | 38 | 57 |
All measurements in millimetres unless marked (°) for angles.
