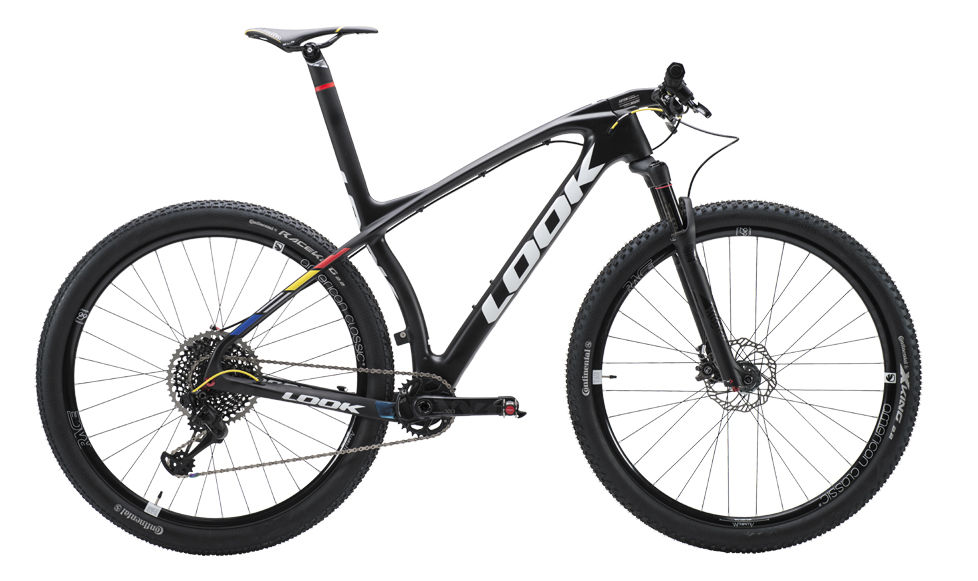

2018 Look 989 geometry
Full frame geometry for the 2018 Look 989, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 600 | 415 | 72.5 | 70 | 94 | 604 | 764 | 55 | 670 | 440 | 51 | 80 |
| L | 615 | 440 | 72.5 | 70 | 110 | 634 | 761 | 55 | 700 | 440 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
