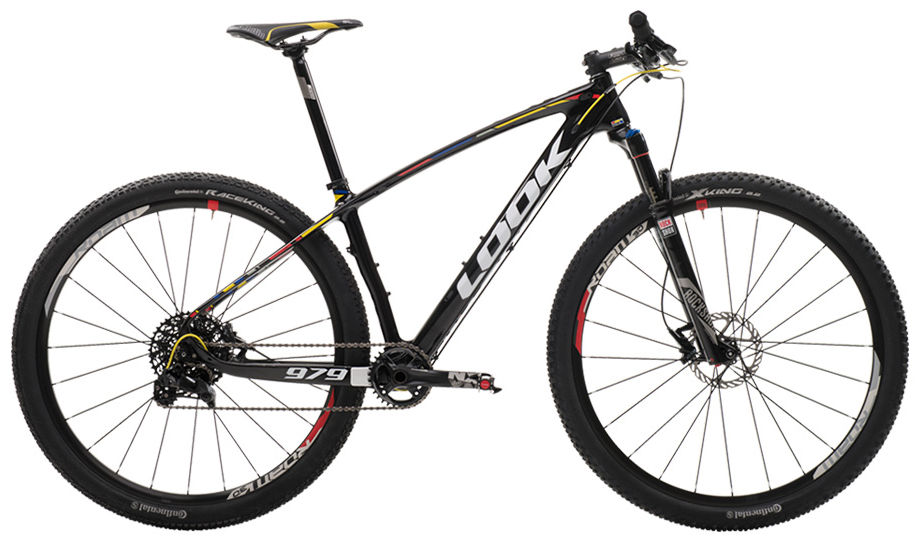

2016 Look 979 geometry
Full frame geometry for the 2016 Look 979, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 608 | 410 | 72.3 | 71.3 | 110 | 606 | 747 | 55 | 663 | 438 | 1095 | 46 | 86 |
| L | 631 | 421 | 72.3 | 71.3 | 120 | 622 | 792 | 55 | 667 | 438 | 1099 | 46 | 76 |
All measurements in millimetres unless marked (°) for angles.
