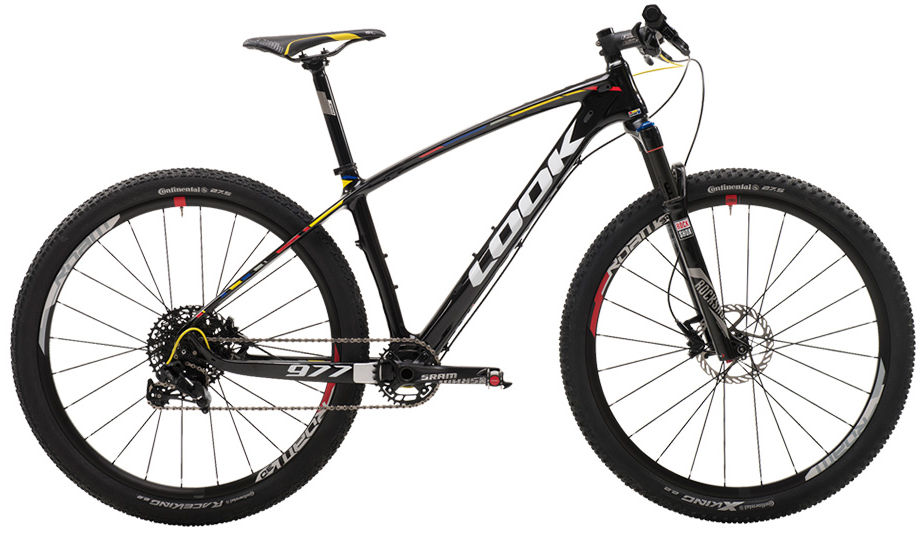

2016 Look 977 geometry
Full frame geometry for the 2016 Look 977, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 582 | 389 | 73.6 | 70.6 | 95 | 560 | 684 | 47 | 626 | 430 | 1051 | 44 | 76 |
| M | 592 | 410 | 73.6 | 70.6 | 105 | 585 | 722 | 47 | 651 | 430 | 1077 | 44 | 76 |
All measurements in millimetres unless marked (°) for angles.
