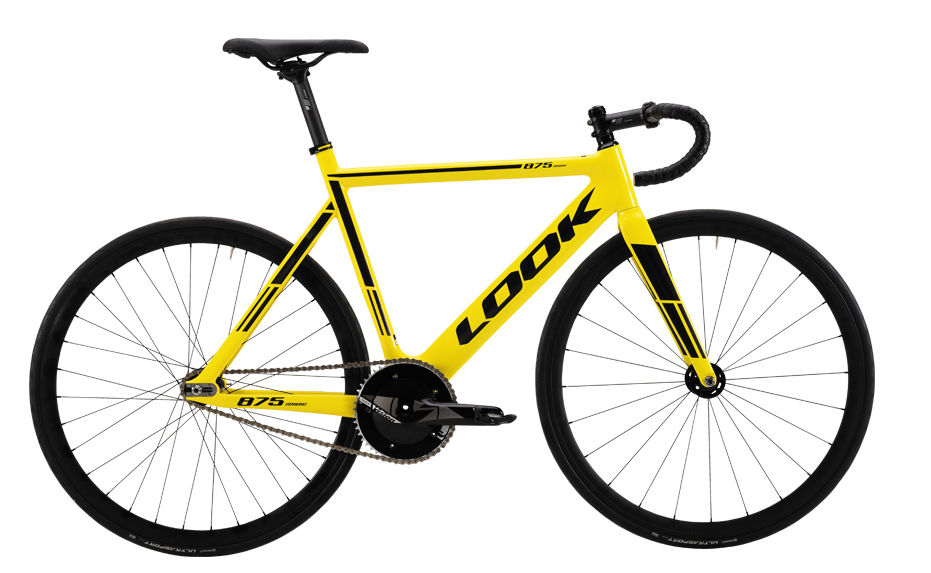

2018 Look 875 Madison geometry
Full frame geometry for the 2018 Look 875 Madison, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 480 | 360 | 73.5 | 73 | 95 | 502 | 745 | 50 | 539 | 380 | 43 | 59 |
| S | 495 | 385 | 73.5 | 73 | 110 | 532 | 760 | 50 | 568 | 380 | 43 | 59 |
| M | 510 | 410 | 73.5 | 73 | 126 | 561 | 774 | 50 | 598 | 380 | 43 | 59 |
| L | 525 | 435 | 73.5 | 73 | 142 | 590 | 790 | 50 | 627 | 380 | 43 | 59 |
| XL | 540 | 460 | 73.5 | 73 | 158 | 620 | 805 | 50 | 657 | 380 | 43 | 59 |
All measurements in millimetres unless marked (°) for angles.
