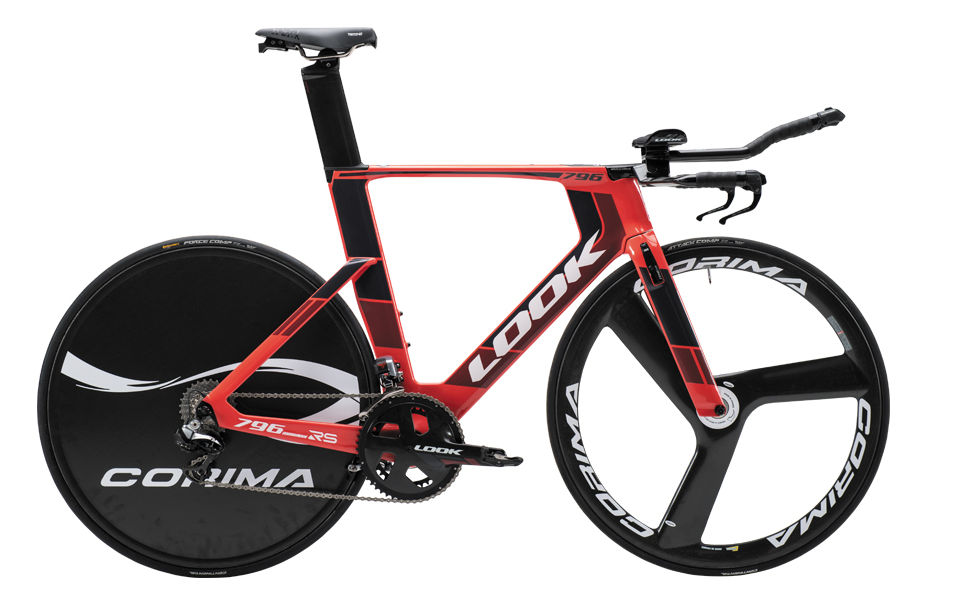

2016 Look 796 geometry
Full frame geometry for the 2016 Look 796, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XSS | 488 | 382 | 76.5 | 72 | 78 | 498 | 570 | 781 | 75 | 570 | 405 | 46 | 62 |
| SM | 523 | 409 | 76.5 | 72 | 114 | 533 | 608 | 816 | 75 | 608 | 405 | 46 | 62 |
| L/XL | 557 | 436 | 76.5 | 72 | 150 | 568 | 646 | 850 | 75 | 646 | 405 | 46 | 62 |
All measurements in millimetres unless marked (°) for angles.
