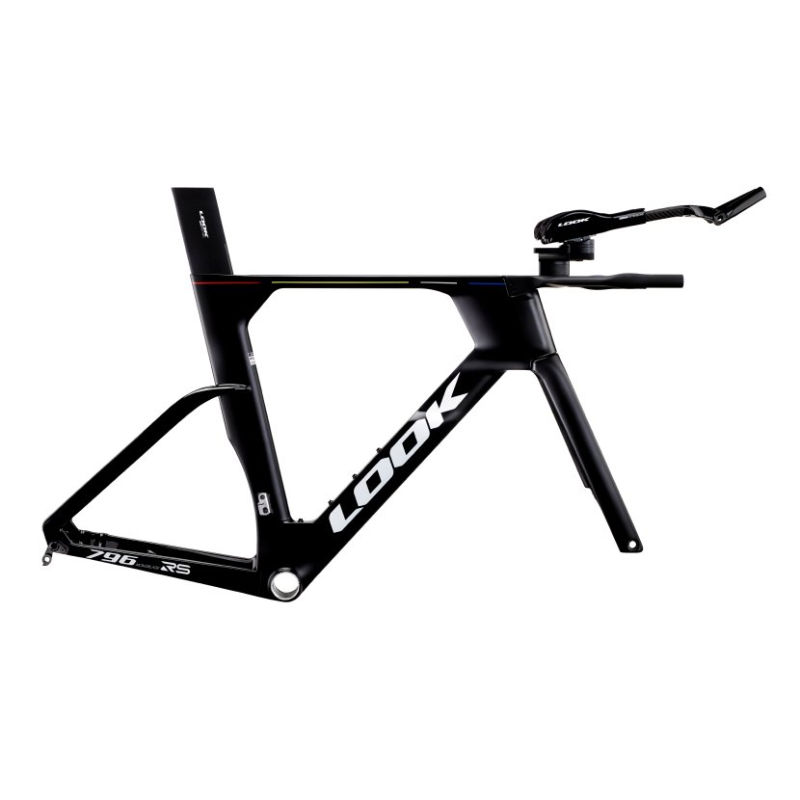

2024 Look 796 Monoblade RS geometry
Full frame geometry for the 2024 Look 796 Monoblade RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 502 | 393 | 77 | 72.5 | 96.6 | 508.9 | 512.5 | 772 | 75 | 578.6 | 410 | 44 | 62.6 |
| S | 527 | 405 | 77 | 72.5 | 124.8 | 526.7 | 541 | 797 | 75 | 598.4 | 410 | 44 | 62.6 |
| M | 552 | 417 | 77 | 72.5 | 151 | 544.4 | 567 | 822 | 75 | 618.1 | 410 | 44 | 62.6 |
| L | 577 | 429 | 77 | 72.5 | 177.2 | 562.2 | 592 | 847 | 75 | 637.8 | 410 | 44 | 62.6 |
All measurements in millimetres unless marked (°) for angles.
