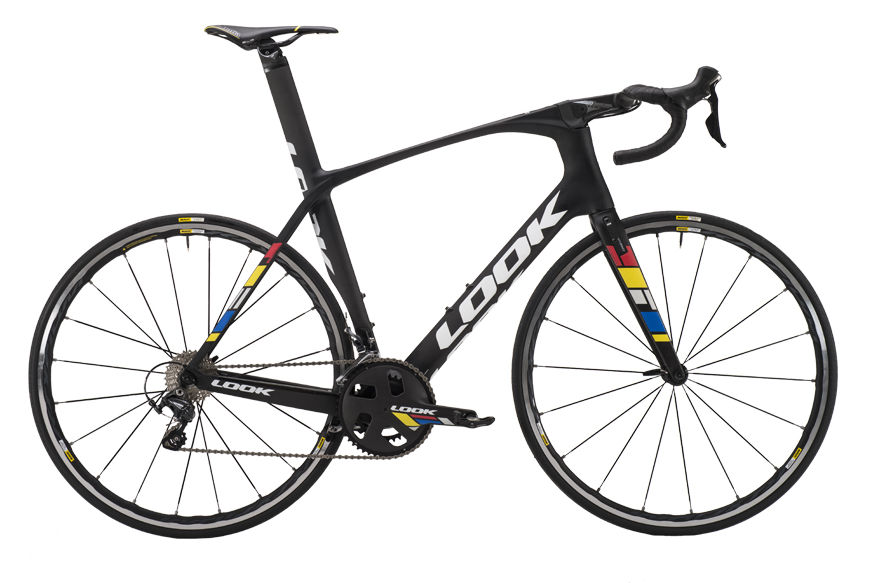

2018 Look 795 geometry
Full frame geometry for the 2018 Look 795, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 365 | 74 | 71.8 | 117 | 513 | 726 | 65 | 568 | 405 | 50 | 58 |
| S | 534 | 375 | 74 | 71.8 | 142 | 530 | 751 | 65 | 586 | 405 | 50 | 58 |
| M | 558 | 385 | 73 | 73 | 161 | 556 | 768 | 65 | 584 | 405 | 43 | 58 |
| L | 582 | 395 | 73 | 73 | 185 | 573 | 800 | 65 | 602 | 405 | 43 | 58 |
| XL | 606 | 405 | 73 | 73 | 211 | 590 | 822 | 65 | 619 | 405 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
