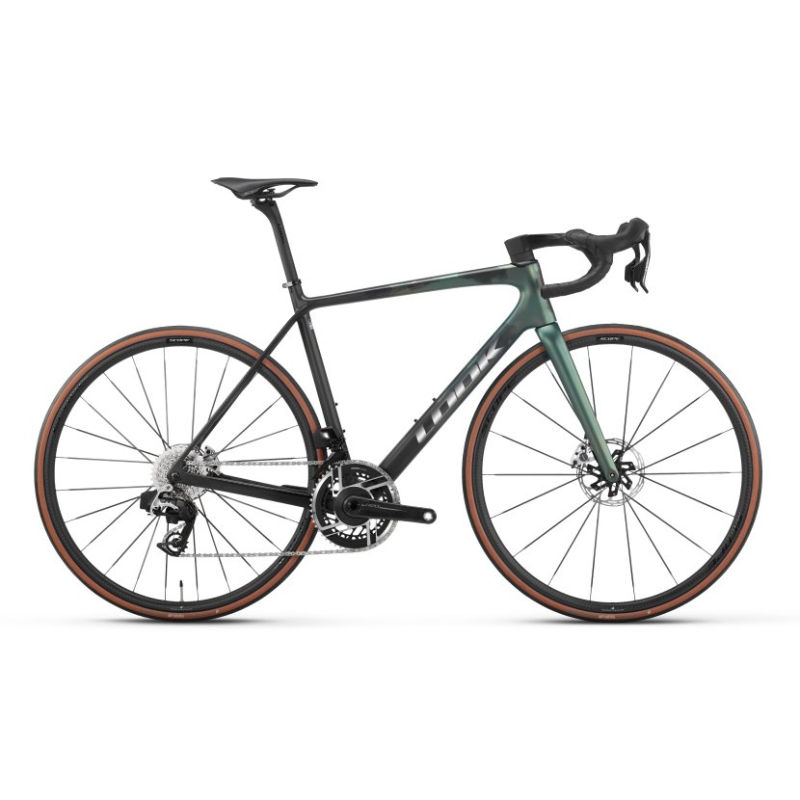

2024 Look 785 Huez RS geometry
Full frame geometry for the 2024 Look 785 Huez RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519.2 | 365.3 | 74.5 | 71.5 | 94.4 | 509.3 | 480 | 709.9 | 73 | 569.8 | 410 | 50 |
| S | 543.3 | 375.3 | 74.5 | 71.5 | 119.6 | 526 | 504 | 733.7 | 73 | 587.6 | 410 | 50 |
| M | 567.3 | 385.6 | 74.5 | 73 | 140.7 | 543 | 530 | 761.7 | 70.5 | 586.7 | 410 | 43 |
| L | 591.3 | 395.5 | 74.5 | 73 | 165.8 | 559.6 | 554 | 785.5 | 70.5 | 603.9 | 410 | 43 |
| XL | 615.3 | 405.6 | 74.5 | 73 | 193.5 | 576.3 | 579 | 812.5 | 68 | 621.7 | 410 | 43 |
All measurements in millimetres unless marked (°) for angles.
