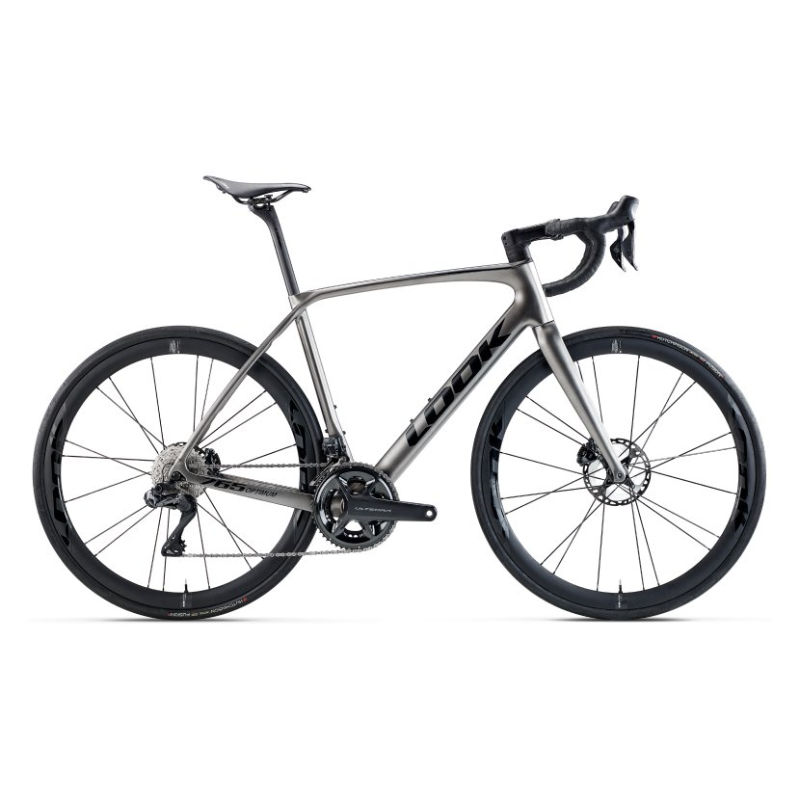

2024 Look 765 Optimum geometry
Full frame geometry for the 2024 Look 765 Optimum, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 534 | 359 | 74 | 70.8 | 117 | 511.8 | 470 | 742 | 76 | 576 | 415 | 50 | 67 |
| S | 558 | 369 | 74 | 70.8 | 142 | 528.7 | 490 | 766 | 76 | 594 | 415 | 50 | 67 |
| M | 582 | 379 | 74 | 70.8 | 170 | 545.5 | 510 | 790 | 73.5 | 613 | 415 | 50 | 67 |
| L | 606 | 389 | 74 | 70.8 | 196 | 562.4 | 535 | 814 | 73.5 | 630 | 415 | 50 | 67 |
| XL | 630 | 399 | 74 | 70.8 | 224 | 579.3 | 560 | 838 | 71 | 650 | 415 | 50 | 67 |
All measurements in millimetres unless marked (°) for angles.
