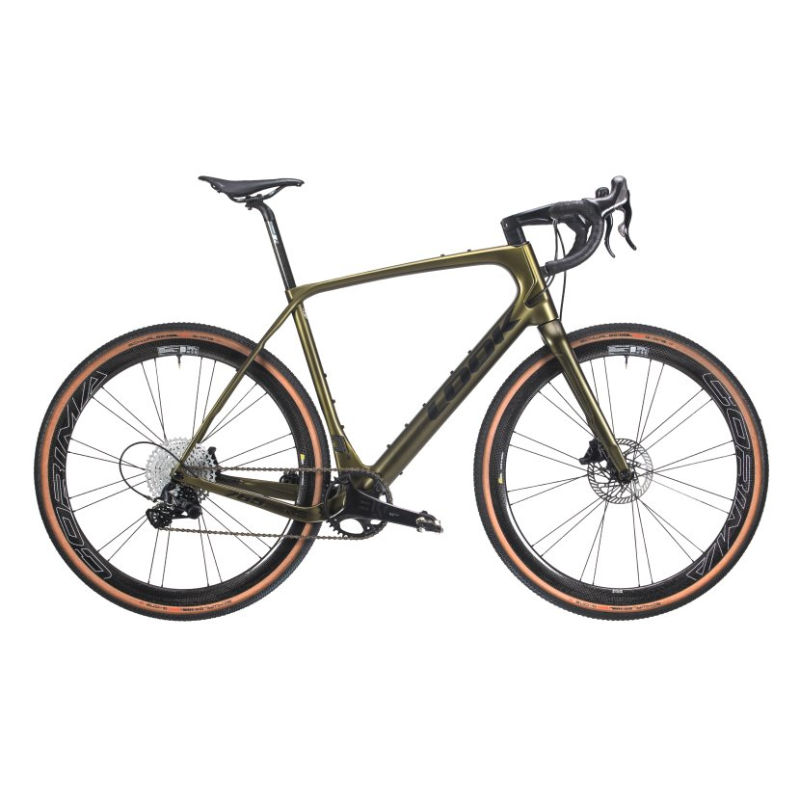

2024 Look 765 Gravel RS geometry
Full frame geometry for the 2024 Look 765 Gravel RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 355 | 74 | 70.3 | 111.5 | 507 | 450 | 745 | 70 | 577 | 420 | 50 | 72 |
| S | 554 | 365 | 74 | 70.3 | 137 | 524 | 472.7 | 765 | 70 | 595.5 | 420 | 50 | 72 |
| M | 578 | 375 | 73 | 70.3 | 162.5 | 552 | 500.3 | 793 | 70 | 614 | 420 | 50 | 72 |
| L | 602 | 385 | 73 | 70.3 | 188 | 569 | 525.4 | 816 | 70 | 632.5 | 420 | 50 | 72 |
| XL | 626 | 395 | 73 | 70.3 | 213.5 | 586.5 | 550.5 | 843 | 70 | 651 | 420 | 50 | 72 |
All measurements in millimetres unless marked (°) for angles.
