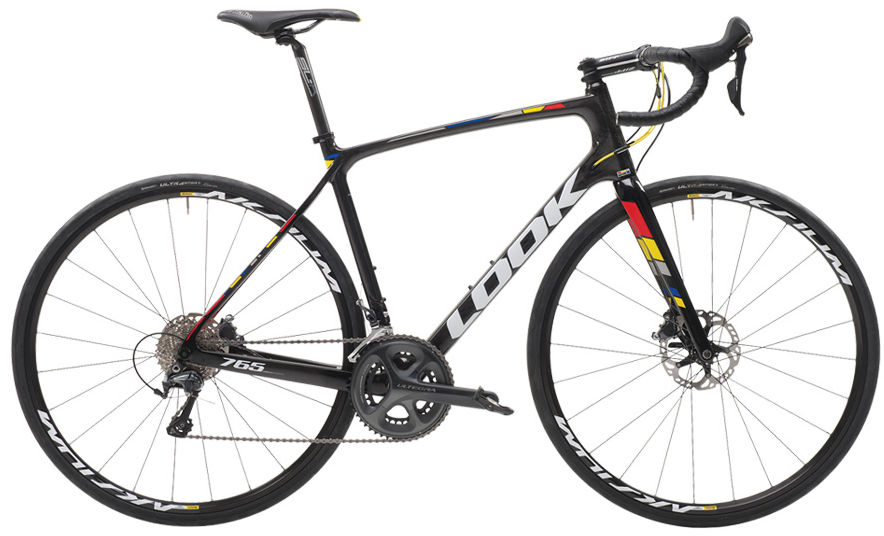

2016 Look 765 Disc geometry
Full frame geometry for the 2016 Look 765 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 355 | 74 | 70.8 | 139 | 507 | 790 | 68 | 573 | 410 | 973 | 50 | 65 |
| S | 554 | 365 | 74 | 70.8 | 164 | 524 | 813 | 68 | 591 | 410 | 991 | 50 | 65 |
| M | 578 | 375 | 73 | 72 | 182 | 552 | 836 | 68 | 590 | 410 | 990 | 43 | 65 |
| L | 602 | 385 | 73 | 72 | 206 | 569 | 862 | 68 | 607 | 410 | 1008 | 43 | 65 |
| XL | 626 | 395 | 73 | 72 | 233 | 586 | 887 | 68 | 625 | 410 | 1026 | 43 | 65 |
All measurements in millimetres unless marked (°) for angles.
