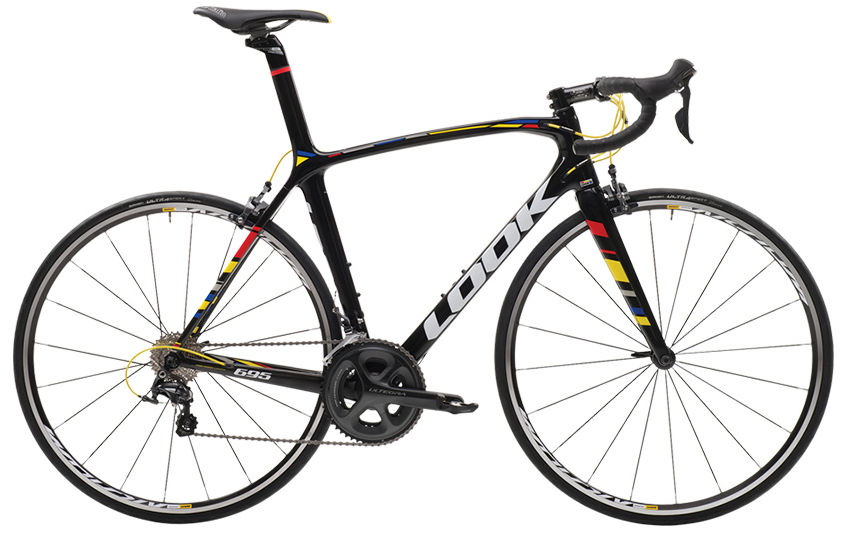

2016 Look 695 ZR geometry
Full frame geometry for the 2016 Look 695 ZR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 516 | 371 | 74.8 | 71 | 122 | 512 | 732 | 65 | 576 | 405 | 972 | 43 | 71 |
| S | 535 | 380 | 74.5 | 72 | 140 | 528 | 753 | 65 | 581 | 405 | 977 | 43 | 65 |
| M | 560 | 384 | 74 | 73 | 162 | 544 | 774 | 65 | 583 | 405 | 980 | 43 | 58 |
| L | 567 | 394 | 73.8 | 73 | 170 | 560 | 790 | 65 | 596 | 405 | 992 | 43 | 58 |
| XL | 588 | 400 | 73.5 | 73 | 192 | 575 | 811 | 65 | 609 | 405 | 1005 | 43 | 58 |
| XXL | 607 | 400 | 73 | 73 | 210 | 585 | 829 | 65 | 614 | 405 | 1010 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
