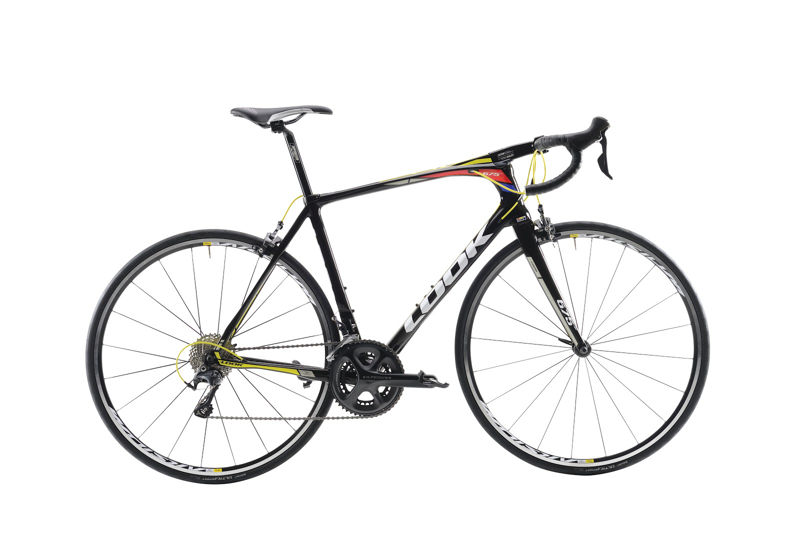

2016 Look 675 Light geometry
Full frame geometry for the 2016 Look 675 Light, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 365 | 74.5 | 71.4 | 132 | 510 | 475 | 753 | 65 | 569 | 410 | 43 |
| S | 538 | 370 | 74.5 | 71.8 | 144 | 520 | 489 | 768 | 65 | 575 | 410 | 43 |
| M | 553 | 377 | 73.8 | 72.3 | 157 | 538 | 508 | 786 | 65 | 581 | 410 | 43 |
| L | 567 | 386 | 73.5 | 72.5 | 172 | 554 | 523 | 802 | 65 | 592 | 410 | 43 |
| XL | 581 | 396 | 73.6 | 72.4 | 187 | 571 | 538 | 816 | 65 | 606 | 410 | 43 |
All measurements in millimetres unless marked (°) for angles.
