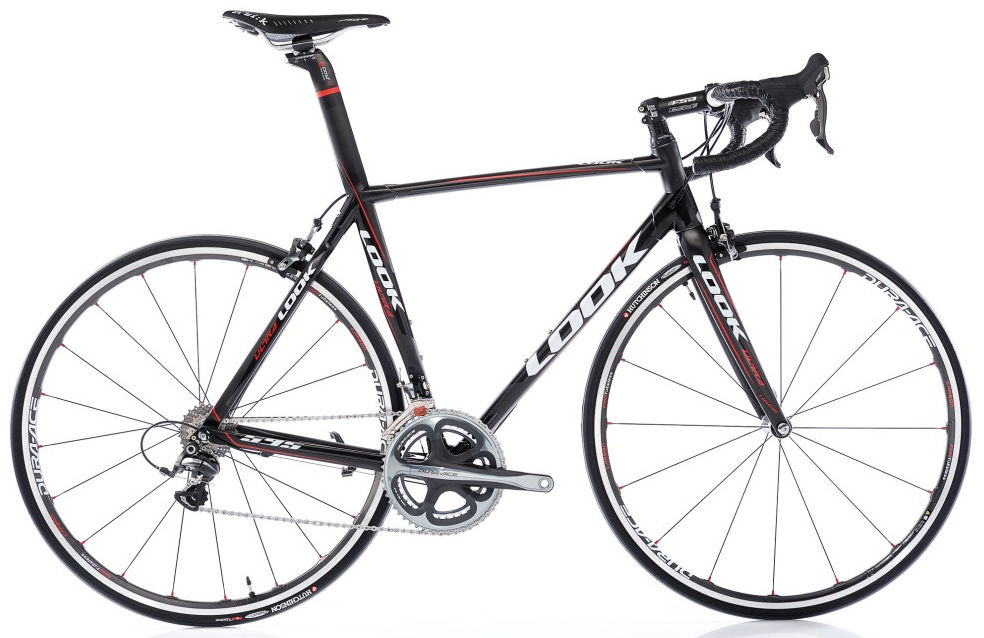

2012 Look 595 geometry
Full frame geometry for the 2012 Look 595, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 512 | 377 | 74.5 | 71.5 | 112 | 520 | 650 | 721 | 70 | 573 | 405 | 968 | 43 | 68 |
| S | 526 | 383 | 74.5 | 72 | 125 | 530 | 660 | 730 | 70 | 580 | 405 | 975 | 43 | 68 |
| M | 551 | 384 | 73.8 | 73 | 148 | 545 | 700 | 767 | 70 | 580 | 405 | 975 | 43 | 58 |
| L | 559 | 397 | 73.8 | 73 | 156 | 560 | 710 | 775 | 70 | 595 | 405 | 990 | 43 | 58 |
| XL | 583 | 397 | 73 | 73 | 182 | 575 | 750 | 811 | 70 | 603 | 405 | 998 | 43 | 58 |
| XXL | 599 | 407 | 73 | 73 | 198 | 590 | 760 | 820 | 70 | 618 | 405 | 1013 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
