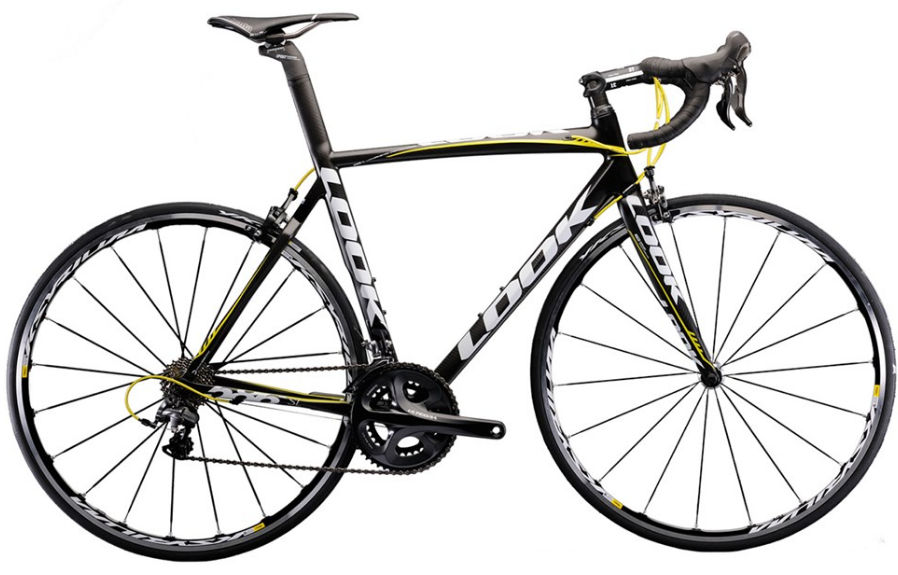

2012 Look 586 geometry
Full frame geometry for the 2012 Look 586, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 379 | 74.8 | 71.5 | 109 | 520 | 625 | 708 | 70 | 575 | 405 | 970 | 43 | 68 |
| S | 527 | 380 | 74.3 | 72 | 127 | 530 | 660 | 739 | 70 | 578 | 405 | 973 | 43 | 64 |
| M | 552 | 381 | 74 | 73 | 149 | 540 | 695 | 769 | 70 | 577 | 405 | 972 | 43 | 58 |
| L | 559 | 394 | 73.5 | 73 | 157 | 560 | 730 | 797 | 70 | 593 | 405 | 988 | 43 | 58 |
| XL | 581 | 398 | 73 | 73 | 179 | 575 | 760 | 814 | 70 | 603 | 405 | 998 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
