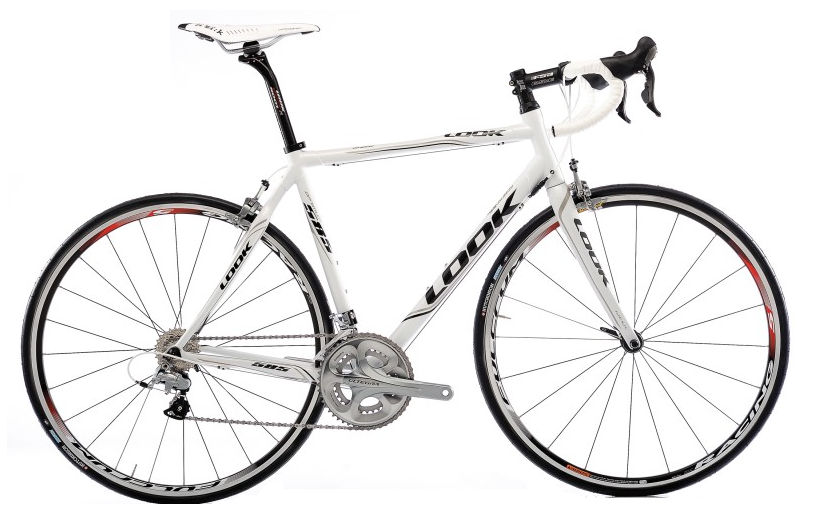

2012 Look 585 geometry
Full frame geometry for the 2012 Look 585, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 378 | 74.5 | 71.5 | 105 | 520 | 466 | 717 | 70 | 573 | 405 | 968 | 43 | 68 |
| S | 526 | 383 | 74.5 | 72 | 125 | 530 | 476 | 731 | 70 | 580 | 405 | 975 | 43 | 64 |
| M | 551 | 384 | 73.8 | 73 | 148 | 545 | 521 | 764 | 70 | 580 | 405 | 975 | 43 | 58 |
| L | 559 | 397 | 73.8 | 73 | 156 | 560 | 531 | 773 | 70 | 595 | 405 | 990 | 43 | 58 |
| XL | 577 | 399 | 73 | 73 | 175 | 575 | 596 | 812 | 70 | 603 | 405 | 998 | 43 | 58 |
| XXL | 600 | 404 | 73 | 73 | 199 | 587 | 609 | 829 | 70 | 617 | 405 | 1012 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
