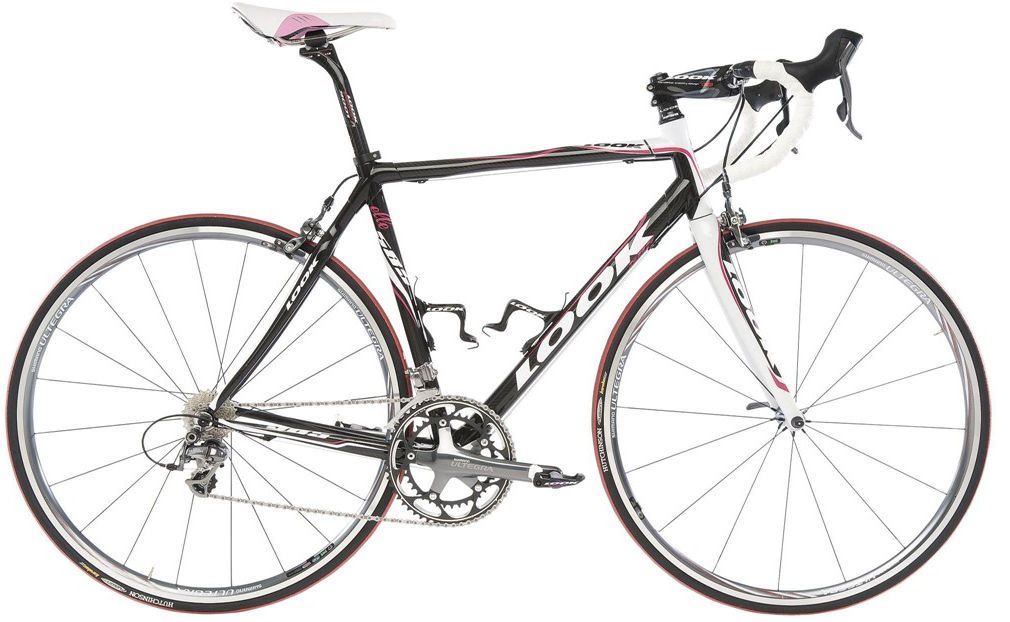

2012 Look 585 Optimum geometry
Full frame geometry for the 2012 Look 585 Optimum, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 363 | 74.5 | 71 | 121 | 509 | 466 | 719 | 70 | 567 | 405 | 962 | 43 | 71 |
| S | 539 | 366 | 74.5 | 71.5 | 141 | 518 | 476 | 733 | 70 | 573 | 405 | 968 | 43 | 68 |
| M | 564 | 367 | 73.8 | 72.5 | 164 | 532 | 521 | 766 | 70 | 572 | 405 | 967 | 43 | 61 |
| L | 572 | 378 | 73.8 | 72.5 | 172 | 546 | 531 | 775 | 70 | 586 | 405 | 981 | 43 | 61 |
| XL | 590 | 380 | 73 | 72.5 | 191 | 561 | 596 | 814 | 70 | 594 | 405 | 989 | 43 | 61 |
| XXL | 613 | 388 | 73 | 72.5 | 215 | 576 | 609 | 831 | 70 | 608 | 405 | 1003 | 43 | 61 |
All measurements in millimetres unless marked (°) for angles.
