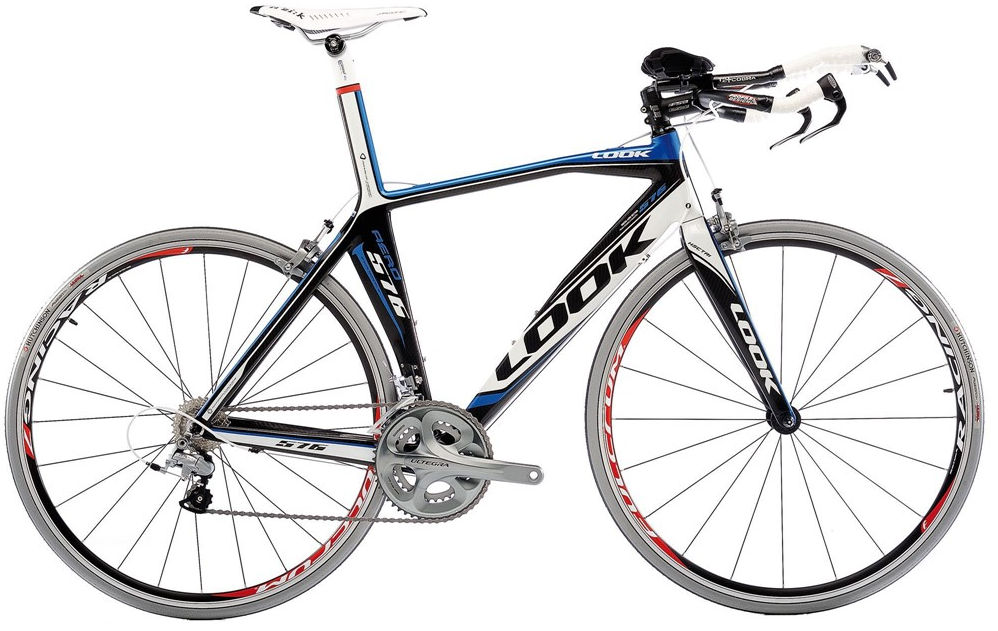

2010 Look 576 geometry
Full frame geometry for the 2010 Look 576, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 522 | 387 | 78 | 72.5 | 125 | 500 | 433 | 755 | 65 | 580 | 400 | 971 | 43 |
| M | 547 | 401 | 78 | 72.5 | 151 | 520 | 449 | 775 | 65 | 600 | 400 | 991 | 43 |
| L | 561 | 429 | 78 | 72.5 | 166 | 550 | 471 | 794 | 65 | 632 | 400 | 1023 | 43 |
| XL | 580 | 450 | 78 | 72.5 | 186 | 575 | 484 | 814 | 65 | 654 | 400 | 1045 | 43 |
All measurements in millimetres unless marked (°) for angles.
