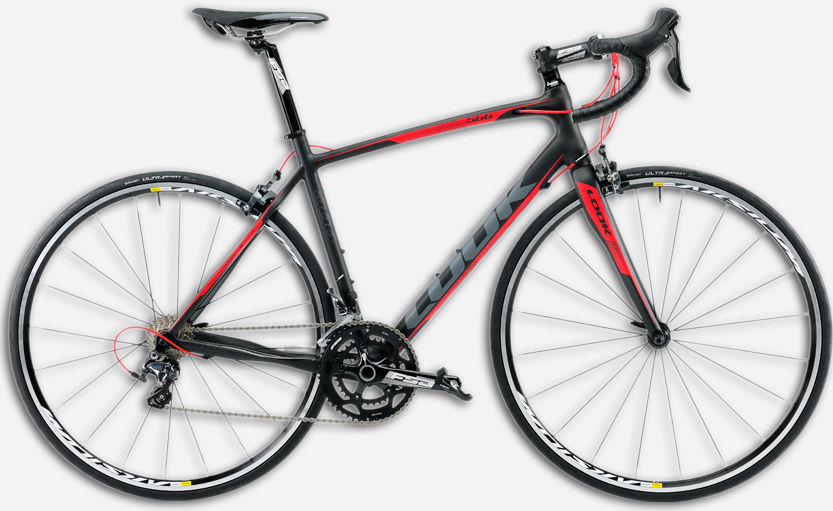

2012 Look 566 geometry
Full frame geometry for the 2012 Look 566, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 364 | 74.5 | 71 | 125 | 507 | 480 | 718 | 65 | 568 | 410 | 43 | 71 |
| S | 538 | 374 | 74.5 | 71.5 | 145 | 523 | 490 | 724 | 65 | 581 | 410 | 43 | 68 |
| M | 561 | 377 | 73.8 | 72.5 | 165 | 541 | 500 | 735 | 65 | 582 | 410 | 43 | 62 |
| L | 580 | 388 | 73.8 | 72.5 | 185 | 557 | 525 | 759 | 65 | 599 | 410 | 43 | 62 |
| XL | 599 | 398 | 73.8 | 72.5 | 205 | 573 | 545 | 778 | 65 | 615 | 410 | 43 | 62 |
All measurements in millimetres unless marked (°) for angles.
