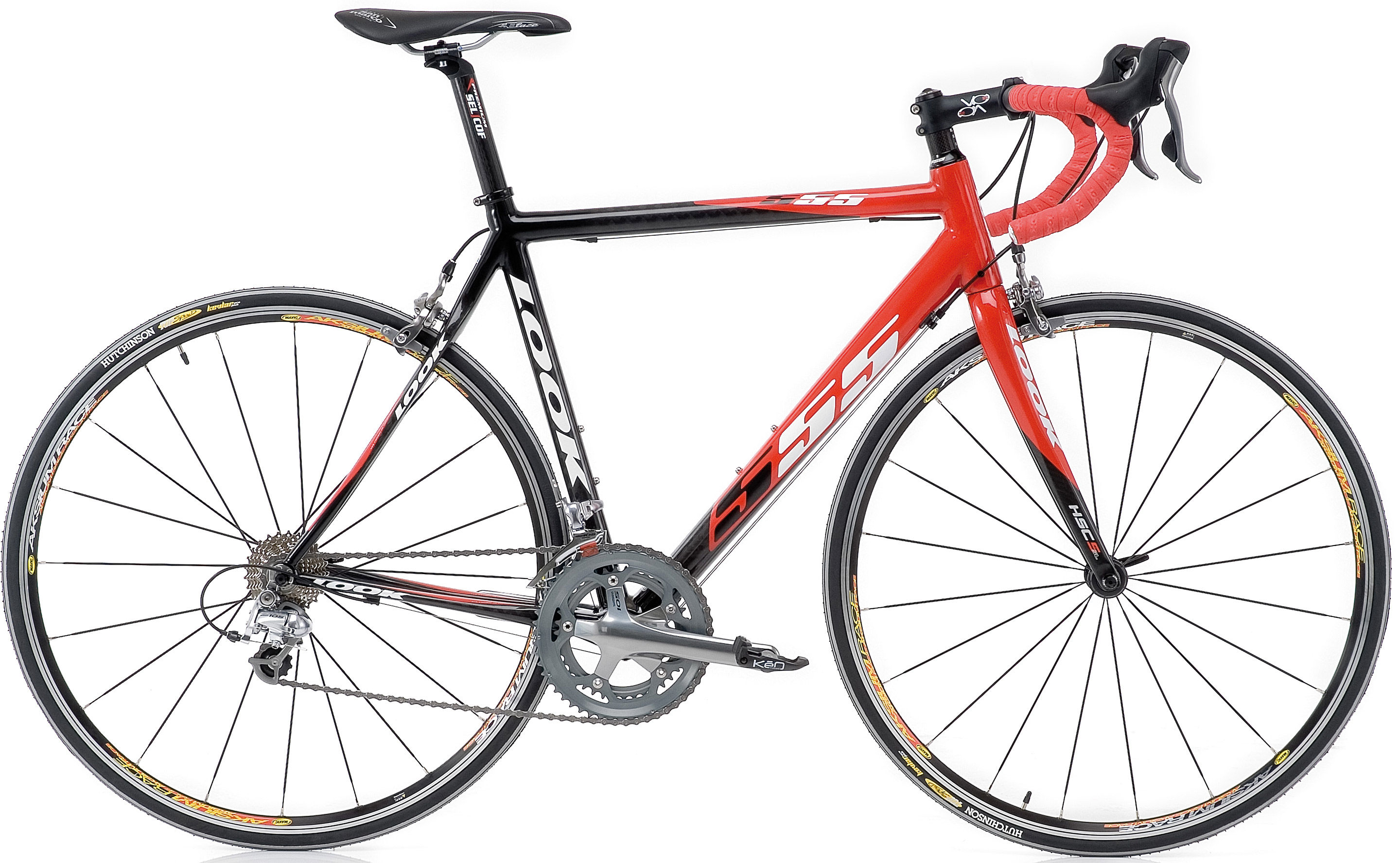

2012 Look 555 geometry
Full frame geometry for the 2012 Look 555, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 530 | 383 | 74.5 | 72 | 130 | 530 | 495 | 734 | 70 | 580 | 405 | 975 | 43 | 64 |
| M | 553 | 384 | 73.8 | 73 | 150 | 545 | 540 | 772 | 70 | 580 | 405 | 975 | 43 | 58 |
| L | 567 | 395 | 73.8 | 73 | 165 | 560 | 550 | 783 | 70 | 595 | 405 | 990 | 43 | 58 |
| XL | 581 | 402 | 73 | 73 | 180 | 580 | 575 | 803 | 70 | 608 | 405 | 1003 | 43 | 58 |
| XXL | 581 | 402 | 73 | 73 | 180 | 580 | 575 | 803 | 70 | 608 | 405 | 1003 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
