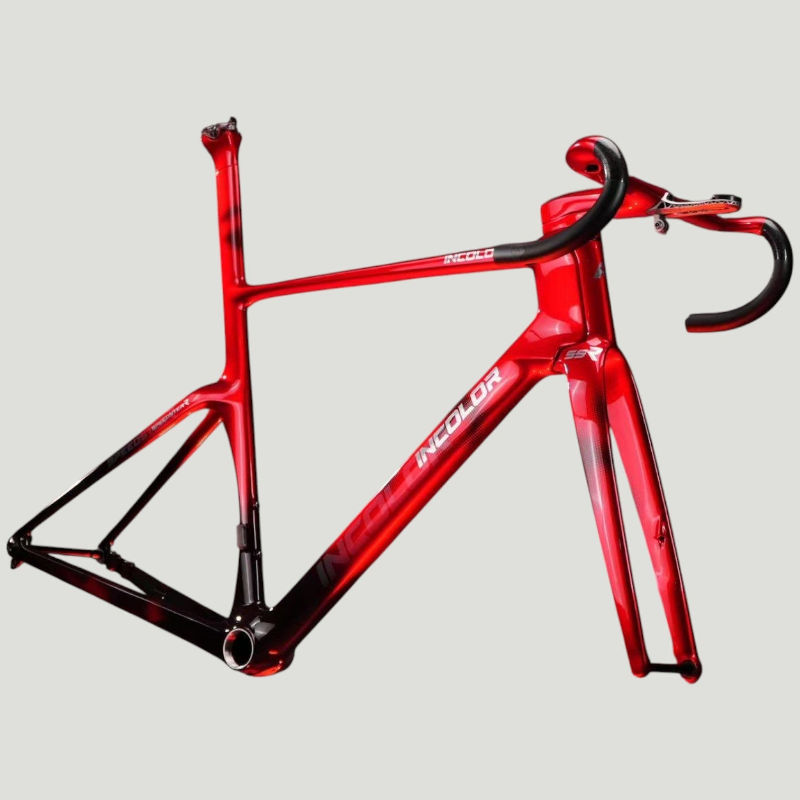

2026 InColor SSR geometry
Full frame geometry for the 2026 InColor SSR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 511 | 364 | 75 | 70.8 | 110 | 501 | 715 | 78 | 578.3 | 405 | 970.4 | 55 | 60.2 |
| 48 | 519 | 370 | 74.5 | 71 | 117 | 514 | 724 | 78 | 585.2 | 405 | 977.4 | 55 | 58.9 |
| 51 | 528 | 375 | 74.5 | 71.2 | 129 | 522 | 738 | 75 | 592.1 | 405 | 985.3 | 55 | 57.7 |
| 54 | 543 | 382 | 74 | 72 | 140 | 538 | 754 | 75 | 591.4 | 405 | 984.6 | 50 | 58 |
| 56 | 563 | 389 | 73.8 | 72 | 164 | 553.2 | 777 | 72 | 605.3 | 405 | 999.6 | 50 | 58 |
| 58 | 583 | 397 | 73.5 | 72.3 | 184.5 | 571 | 799 | 72 | 615 | 405 | 1010 | 50 | 56.4 |
| 60 | 598 | 404 | 73 | 72.3 | 199 | 589 | 829 | 72 | 626 | 405 | 1020.6 | 50 | 55 |
All measurements in millimetres unless marked (°) for angles.
