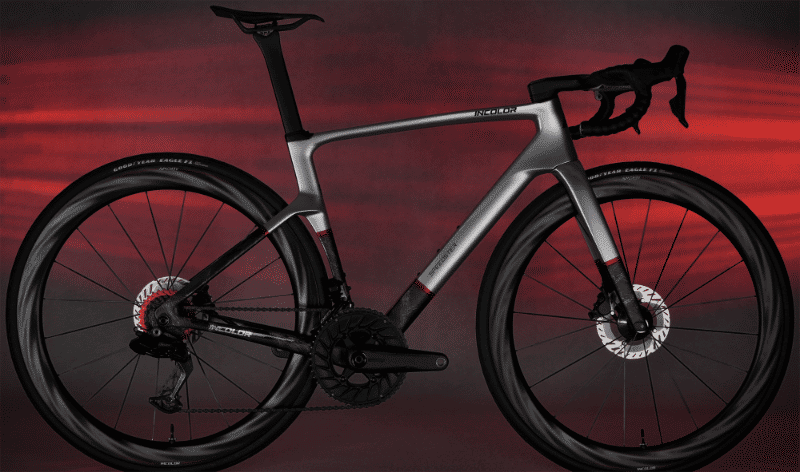

2026 InColor SR geometry
Full frame geometry for the 2026 InColor SR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 508 | 365 | 75 | 70.8 | 104.5 | 501.1 | 443 | 717.4 | 78 | 578.3 | 405 | 970.4 | 55 | 60.2 |
| 48 | 516 | 371 | 74.5 | 71 | 112.2 | 514.1 | 453 | 726.9 | 78 | 585.2 | 405 | 977.4 | 55 | 58.9 |
| 51 | 525 | 376 | 74.5 | 71.2 | 124.1 | 521.6 | 464 | 741.3 | 75 | 592.1 | 405 | 985.3 | 55 | 57.7 |
| 54 | 540 | 383 | 74 | 72 | 135.1 | 537.8 | 480 | 757.5 | 75 | 591.3 | 405 | 984.6 | 50 | 58 |
| 56 | 560 | 390 | 73.8 | 72 | 159.3 | 553.2 | 500 | 780.3 | 72 | 605.3 | 405 | 999.6 | 50 | 58 |
| 58 | 584 | 398 | 73.5 | 72.3 | 183.6 | 571 | 526 | 805.1 | 72 | 618.5 | 405 | 1012.8 | 50 | 56.4 |
All measurements in millimetres unless marked (°) for angles.
